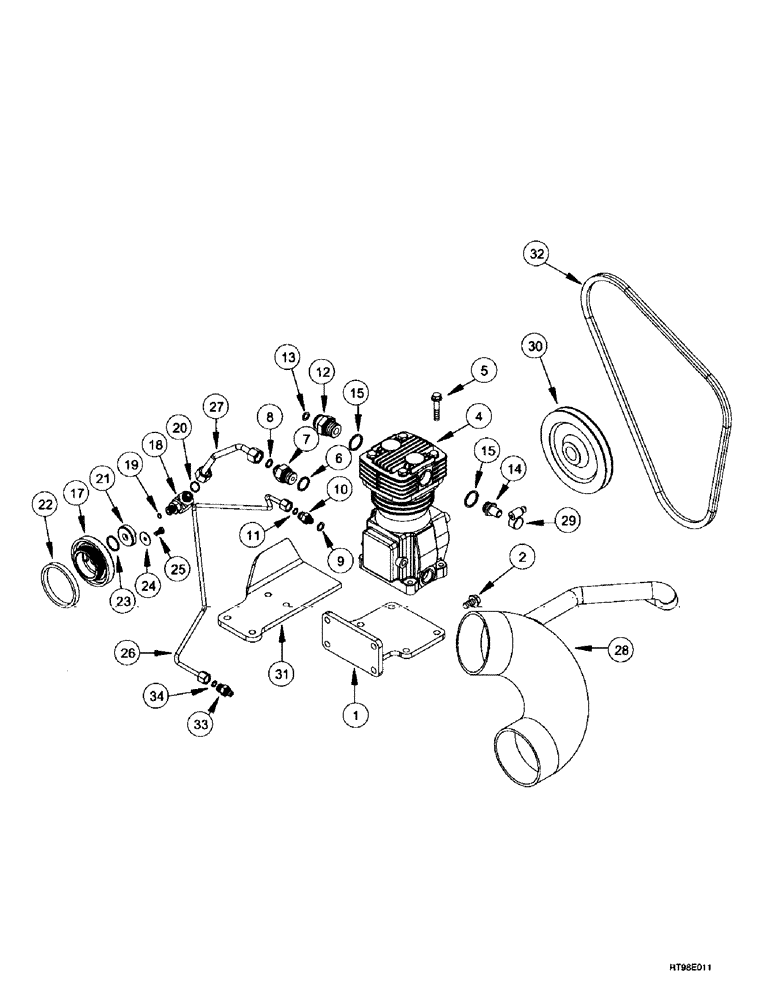

Запчасти Case IH MX240 (7-030) - TRAILER BRAKE, PNEUMATIC, COMPRESSOR MOUNTING AND DRIVE, EUROPE ONLY (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
232440A3
SUPPORT
BRACKET
1шт.
2
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
MX180, MX200, MX220
4шт.
2
844-10025
BOLT,Hex, M10 x 25mm, Cl 8.8
MX240, MX270
4шт.
4
228439A1
AIR COMPRESSOR
1шт.
5
844-8045
BOLT,Hvy Hex, M8 x 45mm, Cl 8.8
4шт.
6
E135040
SEALING WASHER,M22 x 27 x 1.5
RING
1шт.
7
224236A1
FITTING
ADAPTER, Includes: Ref. 8
1шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
9
718743R1
SEALING RING,M10 x 16 x 1
1шт.
10
176896A1
UNION
ADAPTER, 9/16 fc sl x 10 Or, Includes: Ref. 11
1шт.
11
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
12
224234A2
FITTING
ADAPTER, Includes: Ref. 13
1шт.
13
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
14
897502H1
ADAPTER
FITTING
1шт.
15
933608R1
SEALING RING,M26 x 31 x 2
2шт.
17
J918215
ADAPTER
COVER
1шт.
18
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Includes: Ref. 19, 20
1шт.
20
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
21
177335A3
LARGE PLATE
PLATE, LARGE
1шт.
22
J903475
SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk
1шт.
23
J915800
SEAL,Square, 1.68mm Thk x 25.12mm ID, -22
SEALRING
1шт.
24
T103887
WASHER
2шт.
25
614-6012
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
2шт.
26
245975A2
TUBE,0.25" OD, 405, 241 mm Length
TUBE
1шт.
27
245974A2
TUBE,0.375" OD, 138, 108 mm Length
TUBE
1шт.
28
245986A3
LARGE HOSE
HOSE,LARGE
1шт.
29
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
1шт.
30
191348A1
PULLEY
1шт.
31
282711A2
SUPPORT
BRACKET
1шт.
32
385738R1
V-BELT,0.50" W x 49.00" L
1шт.
33
176897A1
UNION
ADAPTER, MX180, MX200, MX220, Includes: Ref. 34
1шт.
33
176896A1
UNION
ADAPTER, 9/16 fc sl x 10 Or, MX240, MX270, Includes: Ref. 34
1шт.
34
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
19
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 34
