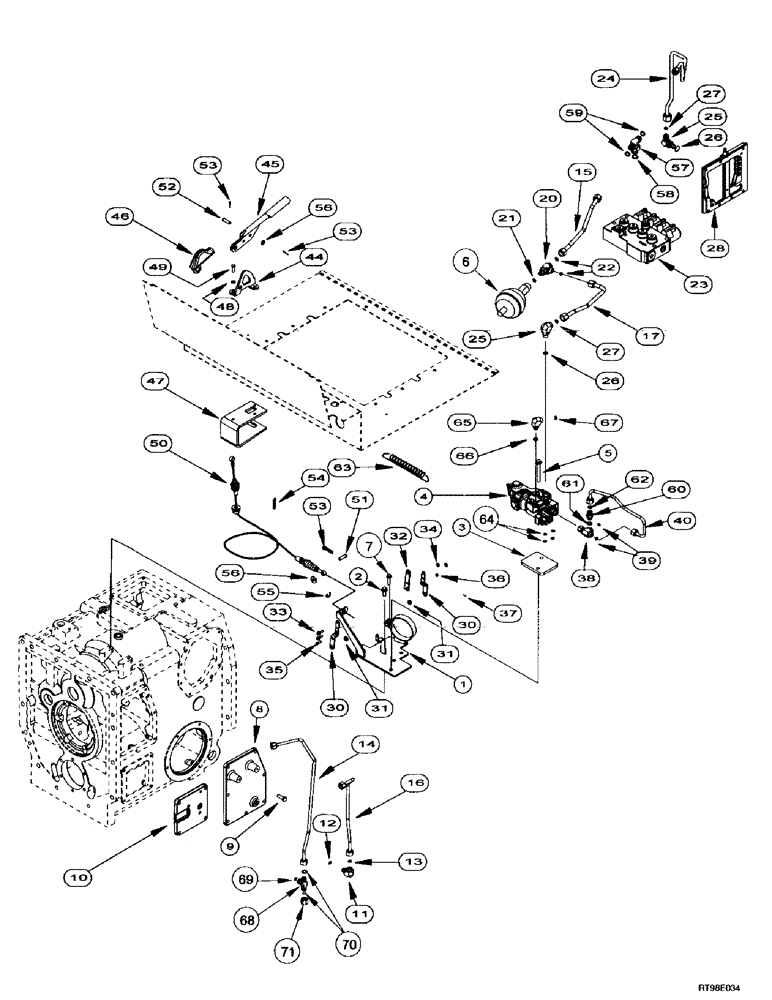

Запчасти Case IH MX240 (7-016) - HYDRAULIC CIRCUIT, BRAKE, EUROPE ONLY (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
259873A2
SUPPORT
BRACKET
1шт.
2
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
2шт.
3
292638A1
LARGE PLATE
PLATE, LARGE
1шт.
4
277823A5
VALVE
ASSY, brake, see Figure 7-020
1шт.
5
844-10085
BOLT,Hvy Hex, M10 x 85mm, Cl 8.8
BOLT flange, M10 x 85; 8.8
2шт.
7
844-8035
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
1шт.
8
259104A1
COVER
1шт.
9
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
7шт.
10
REF
INSTRUCTION
COVER, see Figure 7-00
1шт.
11
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 12, 13
1шт.
12
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
13
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
14
247696A3
TUBE,0.5" OD, 601, 144 mm Length
TUBE
1шт.
15
247694A2
TUBE,0.5" OD, 312, 47 mm Length
TUBE
1шт.
16
247695A1
TUBE,0.375" OD, 377,91 mm Length
TUBE
1шт.
17
247693A1
TUBE
TUBE
1шт.
20
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Includes: Ref. 7, 8
1шт.
21
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
22
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
23
REF
INSTRUCTION
VALVE ASSY, control, see Figure 6-062
1шт.
24
298365A1
TUBE
TUBE
1шт.
25
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. Ref. 12, 13
1шт.
26
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
27
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
28
REF
INSTRUCTION
PLATE ASSY, see Figure 6-010
1шт.
30
292633A2
LEVER
2шт.
31
371990R1
INSERT
2шт.
32
292634A3
LEVER
1шт.
33
844-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
2шт.
34
825-2406
FLANGE NUT,M6 x 1, Cl 8.8
2шт.
35
728-620
CLEVIS PIN,M6 x 20
6 x 20 mm
1шт.
36
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
1шт.
37
733-1610
COTTER PIN,M1.6 x 10
1шт.
38
701-422
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl. Ref. 39
1шт.
39
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
40
297553A1
TUBE
TUBE
1шт.
284357A1
HANDLE
LEVER ASSY, consists of: Ref. 44 - 46
1шт.
44
NSS
NOT SOLD SEPARAT
BRACKET
1шт.
45
299041A1
LEVER
1шт.
46
190015A1
COVER
1шт.
47
297979A1
SUPPORT
BRACKET
1шт.
48
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
3шт.
49
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
3шт.
50
284297A1
CABLE,1313.2mm L
1шт.
52
427-6125
CLEVIS PIN,3/8" x 1 1/4"
3/8 x 1-1/4
1шт.
53
733-2520
COTTER PIN,M2.5 x 20
2шт.
54
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, nylon, 15 in.
1шт.
55
800-4313
CIRCLIP,M13
Retaining
1шт.
56
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
2шт.
57
700-402
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
13/16 fc sl x 18 Or, Includes: Ref. 58, 59
1шт.
Author: Tom A. Sprasky. 700-402 is being changed to a special screen tee. If dealer says the fitting has a screen, supply 330909A1--fitting has a 95 Micron screen.
1шт.
58
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
59
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
60
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 61, 62
1шт.
61
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
62
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
63
327572A2
SPRING
1шт.
64
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
4шт.
65
700-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Includes: Ref. 66, 67
1шт.
66
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
67
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
68
700-443
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB
13/16 fc sl x 14 Or, Includes: Ref. 69, 70
1шт.
69
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
70
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
71
701-905
CAP,13/16" - 16
CAP, 13/16 NF
1шт.
