Запчасти Case IH MX240 (7-006) - BRAKES, DIFFERENTIAL (07) - BRAKES

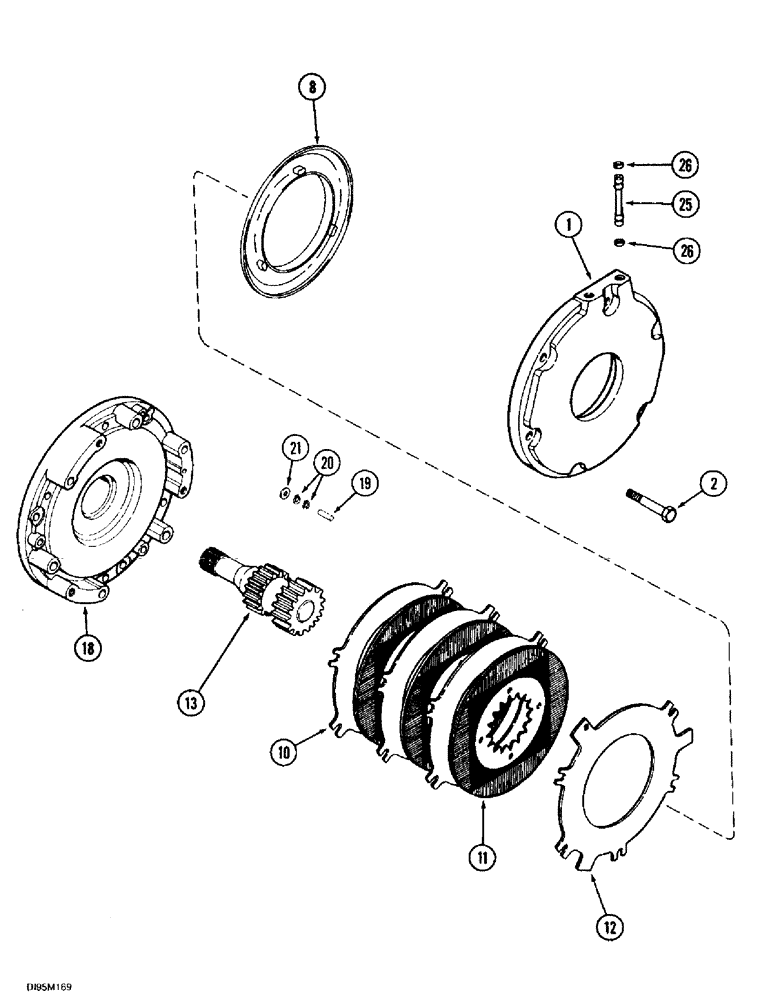

Схема запчастей Case IH MX240 - (7-006) - BRAKES, DIFFERENTIAL (07) - BRAKES
2
21
26
18
11
10
19
8
25
12
1
20
26
13

Артикул

Название

Примечание

Количество

1

1342723C2

COVER

2шт.

2

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

BOLT, right-hand, M16 x 110

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

(LH)

6шт.

8

1997422C1

PISTON

2шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

separator, MX180

6шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

separator, MX200, MX220, MX240, MX270

8шт.

11

120488C2

BRAKE PLATE

friction, MX180

6шт.

11

120488C2

BRAKE PLATE

friction, MX200, MX220, MX240, MX270

8шт.

12

1981187C1

PLATE,192mm ID x 317.29mm OD x 2.74mm Thk

2шт.

13

REF

INSTRUCTION

SHAFT, see Figures 6-088 - 6-092

2шт.

18

REF

INSTRUCTION

RETAINER, see Figure 6-050

2шт.

1349198C1

ADJUSTER

consists of: Ref. 19, 20

6шт.

19

37-1828

DOWEL,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4

1шт.

20

100-1450

SNAP RING,#50, Ext

2шт.

21

1342928C1

BELLEVILLE WASHER

thrust

12шт.

25

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

4шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

8шт.

Выбрано товаров: 17
