Запчасти Case IH MX240 (6-130) - HUB ASSEMBLY, REAR WHEEL (06) - POWER TRAIN

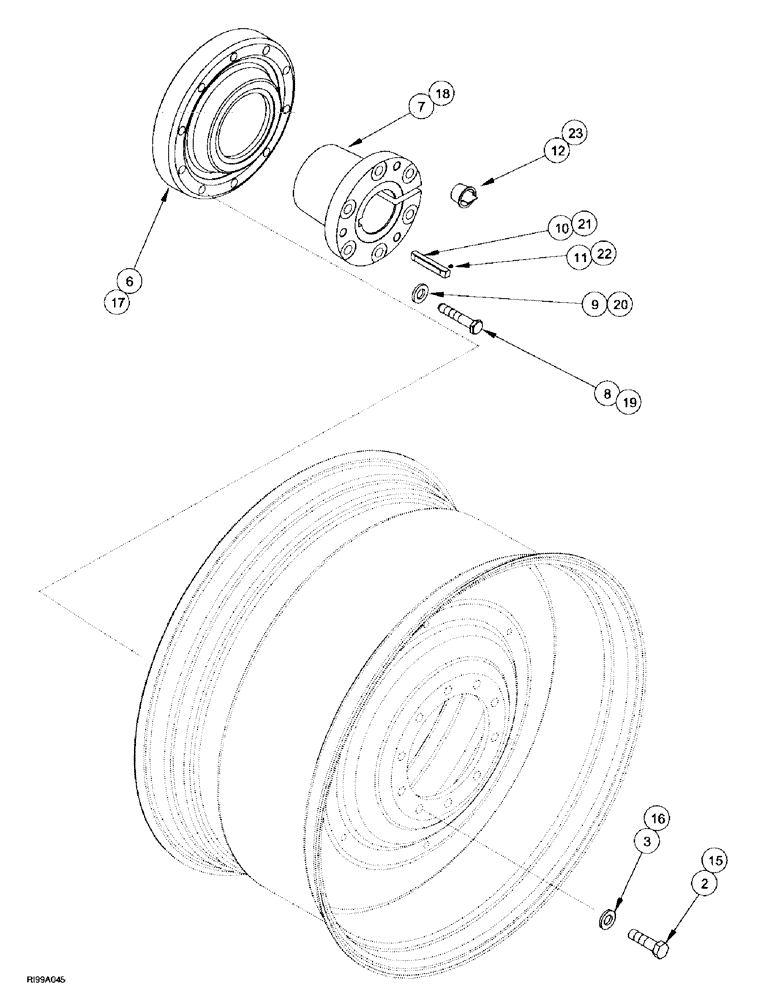

Схема запчастей Case IH MX240 - (6-130) - HUB ASSEMBLY, REAR WHEEL (06) - POWER TRAIN
21
19
22
3
17
15
9
6
18
12
10
20
2
8
23
11
16
7

Артикул

Название

Примечание

Количество

320099A

KIT

attachment, for 102 mm (4 in.) axle, order from machinery price list, consists of: Ref. 2 - 11

1шт.

2

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

3

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

6

185605A2

HUB

2шт.

7

223769A1

HUB

102 mm (4 in.)

2шт.

8

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

10

A63219

KEY

3/4 x 6

2шт.

11

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

12

303401A1

PLUG

plastic

6шт.

320100A

KIT

attachment, for 115 mm (4-1/2 in.) axle, order from machinery price list, consists of: Ref. 15 - 22

1шт.

15

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.

16

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

20шт.

17

185605A2

HUB

2шт.

18

185606A1

HUB

BUSHING, 115 mm (4-1/2 in.)

1шт.

19

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

20

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

21

A63219

KEY

3/4 x 6

2шт.

22

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

23

303401A1

PLUG

plastic

6шт.

Выбрано товаров: 20
