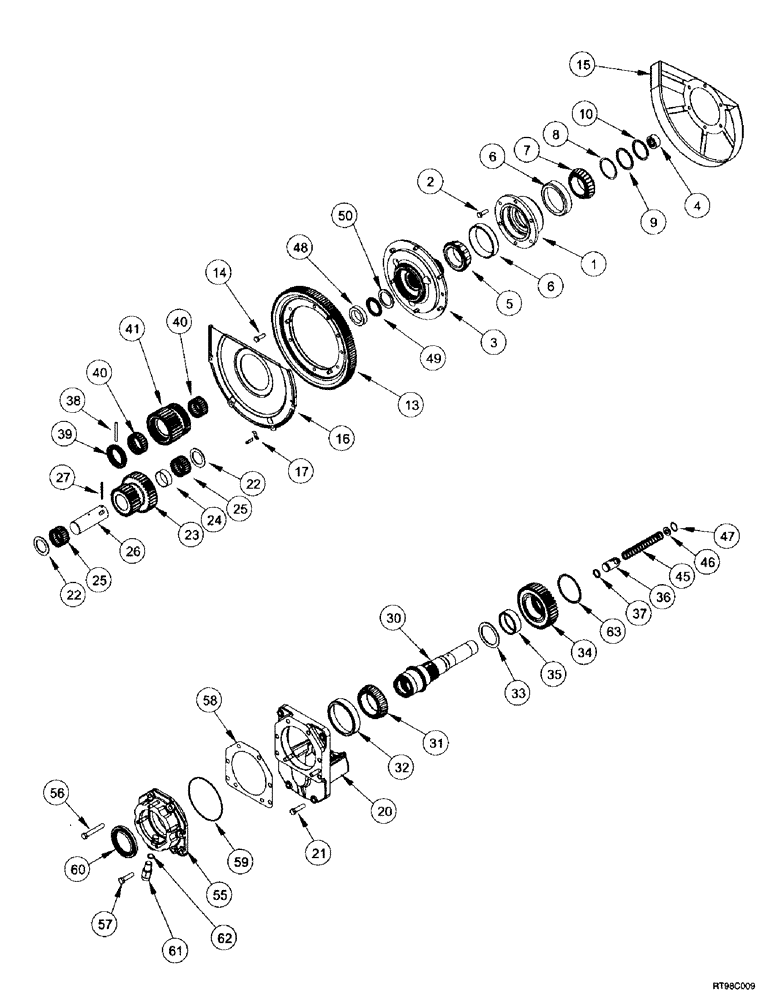

Запчасти Case IH MX240 (6-118) - POWER TAKE-OFF ASSEMBLY, REDUCTION GEAR, DUAL SPEED (06) - POWER TRAIN

1

225806A1

CAGE

IPTO Driven Gear Bearing

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

277389A2

HUB ASSY.

IPTO Driven Gear, Incl 4

1шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

1шт.

5

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

6

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

7

235545A1

TAPERED BEARING,63.51mm ID x 29.96mm W

1шт.

253456A1

SHIM

PACKAGE, Consists of: Ref 8

1шт.

8

249529A1

SHIM,0.203mm Thk

1шт.

8

231773A1

SHIM,0.356mm Thk

1шт.

8

231776A1

SHIM

0.508mm Thk

1шт.

8

231777A1

SHIM

0.559mm Thk

1шт.

8

231778A1

SHIM,0.635mm Thk

1шт.

9

231772A1

SPACER

1шт.

10

231760A1

SNAP RING

Retaining

1шт.

13

226950A4

RING GEAR

125T PTO Driven

1шт.

14

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

15

198709A1

PROTECTION PLATE

Shield

1шт.

16

225810A1

COVER

1шт.

17

139327C1

CLIP

4шт.

20

226037A3

COVER

IPTO Housing

1шт.

21

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

22

226035A1

THRUST WASHER

2шт.

23

226033A3

PINION

34T / 24T IPTO Output Cluster Gear

1шт.

24

300084A1

SPACER,49.8mm ID x 53.78mm OD x 18.93mm L

1шт.

25

138763C91

NEEDLE BEARING,44.44mm ID x 54mm OD x 38.1mm W

2шт.

26

226034A2

SHAFT

Cluster Gear

1шт.

27

38-21240

PIN,3/16" x 2 1/2", Coiled

1шт.

30

NA

NOT SERVICED

SLEEVE, Years: -31-DEC-98

1шт.

Order Ref 30, 34, 35, 40, 41, 45, 48, 50, and 63

1шт.

30

324000A1

GEAR SHAFT

Sleeve, Start Year: 01-JAN-99

1шт.

31

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

32

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

33

226024A3

THRUST WASHER,70.43mm ID x 88mm OD x 3.13mm Thk

1шт.

34

NA

NOT SERVICED

PINION, 38T PTO Output Driven Gear, Years: -31-DEC-98

1шт.

Order Ref 30, 34, 35, 40, 41, 45, 48, 50, and 63

1шт.

34

326733A1

PINION

38T PTO Output Driven Gear, Start Year: 01-JAN-99

1шт.

35

NA

NOT SERVICED

BEARING ASSY, Years: -31-DEC-98

1шт.

Order Ref 30, 34, 35, 40, 41, 45, 48, 50, and 63

1шт.

35

318641A1

BEARING ASSY,69.99mm ID x 78.02mm OD x 24.63mm W

, Start Year: 01-JAN-99

1шт.

36

226028A2

PISTON

1шт.

37

226029A1

O-RING,21.82mm ID x 28.88mm OD x 3.53mm Thk

1шт.

38

38-32044

PIN,5/16" x 2 3/4", Coiled

1шт.

39

226031A2

GEAR,37T Internal / 24T External

1шт.

40

330162A1

NEEDLE BEARING,50.79mm ID x 60.34mm OD x 25.21mm W

2шт.

41

NA

NOT SERVICED

GEAR, 29T PTO Reduction Output, Years: -31-DEC-98

1шт.

Order Ref 30, 34, 35, 40, 41, 45, 48, 50, and 63

1шт.

41

326731A1

GEAR

29T PTO Reduction Output, Start Year: 01-JAN-99

1шт.

45

323066A1

SPRING

1шт.

46

295066A1

SPRING WASHER

1шт.

47

100-21112

SNAP RING,1.125", Int, #112

1шт.

48

327172A1

SPACER

1шт.

49

243544A1

NEEDLE BEARING,45.17mm ID x 64.43mm OD x 6mm W

Thrust

1шт.

50

327372A1

THRUST WASHER

1шт.

55

241384A3

HOUSING

IPTO Output Bearing

1шт.

56

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

57

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

253460A1

SHIM

PACKAGE, Consists of: Ref 58

1шт.

58

249530A1

SHIM

0.203mm Thk

1шт.

58

241383A1

SHIM

0.356mm Thk

1шт.

58

241380A1

SHIM

0.508mm Thk

1шт.

58

241381A1

SHIM

0.559mm Thk

1шт.

58

241382A1

SHIM

0.635mm Thk

1шт.

59

638-54145

O-RING,3.55mm Thk x 145mm ID, Cl 5, 75 Duro

1шт.

60

293053A1

OIL SEAL,74.86mm ID x 107.97mm OD x 12mm Thk

1шт.

61

A186004

SENSOR

PTO Speed

1шт.

62

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

63

102-22318

SNAP RING,#318, 3.311, Int, Spiral

1шт.
