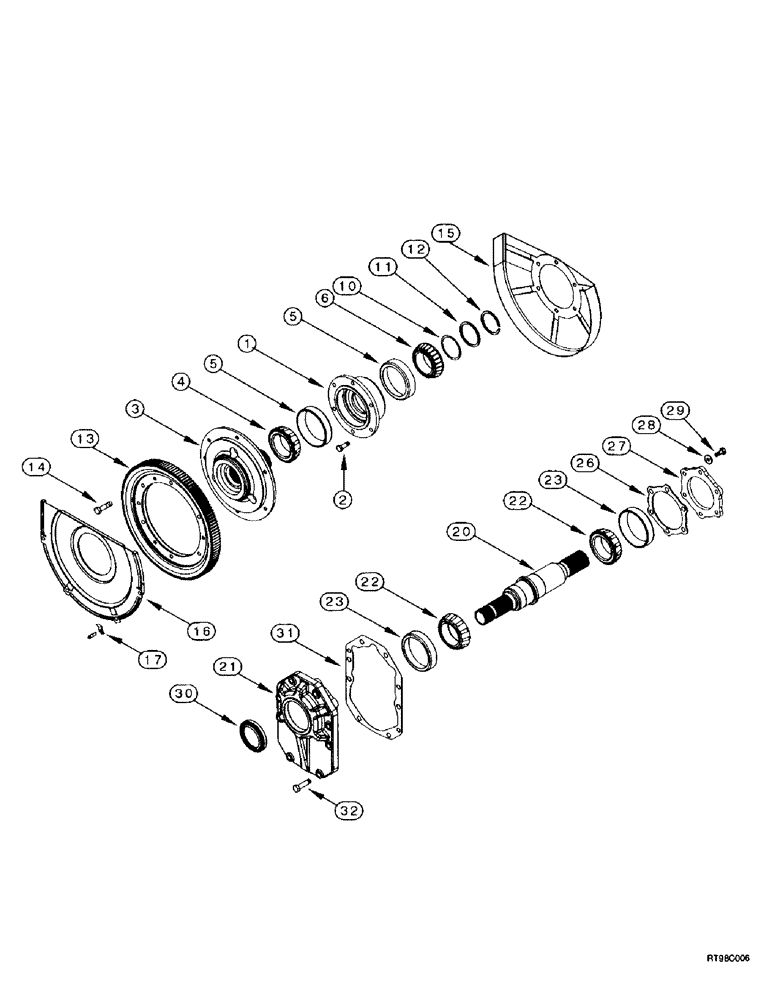

Запчасти Case IH MX240 (6-116) - POWER TAKE-OFF ASSEMBLY, OUTPUT SHAFT, MX200, MX220, MX240, MX270, SINGLE SPEED (06) - POWER TRAIN

1

225806A1

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

277389A2

HUB ASSY.

1шт.

4

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

5

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

cup

2шт.

6

235545A1

TAPERED BEARING,63.51mm ID x 29.96mm W

1шт.

253456A1

SHIM

PACKAGE, consists of: Ref. 10

1шт.

10

249529A1

SHIM,0.203mm Thk

1шт.

10

231773A1

SHIM,0.356mm Thk

1шт.

10

231776A1

SHIM

0.508 mm

1шт.

10

231777A1

SHIM

0.559 mm

1шт.

10

231778A1

SHIM,0.635mm Thk

1шт.

11

231772A1

SPACER

1шт.

12

231760A1

SNAP RING

retaining

1шт.

13

226950A4

RING GEAR

GEAR

1шт.

14

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

15

198709A1

PROTECTION PLATE

SHIELD

1шт.

16

225810A1

COVER

1шт.

17

139327C1

CLIP

4шт.

20

225812A1

SHAFT

45 mm (1-3/4 in.)

1шт.

21

243946A4

COVER

1шт.

22

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

2шт.

23

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

cup

2шт.

253459A4

SHIM KIT

PACKAGE, consists of: Ref. 26

1шт.

26

249532A4

SHIM

0.203 mm

1шт.

26

243949A4

SHIM,115mm ID x 148.38mm OD x 0.36mm Thk

0.356 mm

1шт.

26

243950A4

SHIM

0.508 mm

1шт.

26

243951A4

SHIM

0.559 mm

1шт.

26

243952A4

SHIM

0.635 mm

1шт.

27

305751A1

PLATE

1шт.

28

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

29

627-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9, Full Thd

BOLT, M12 x 80; 10.9

6шт.

30

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

31

228256A1

GASKET,0.79mm Thk

cover

1шт.

32

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.
