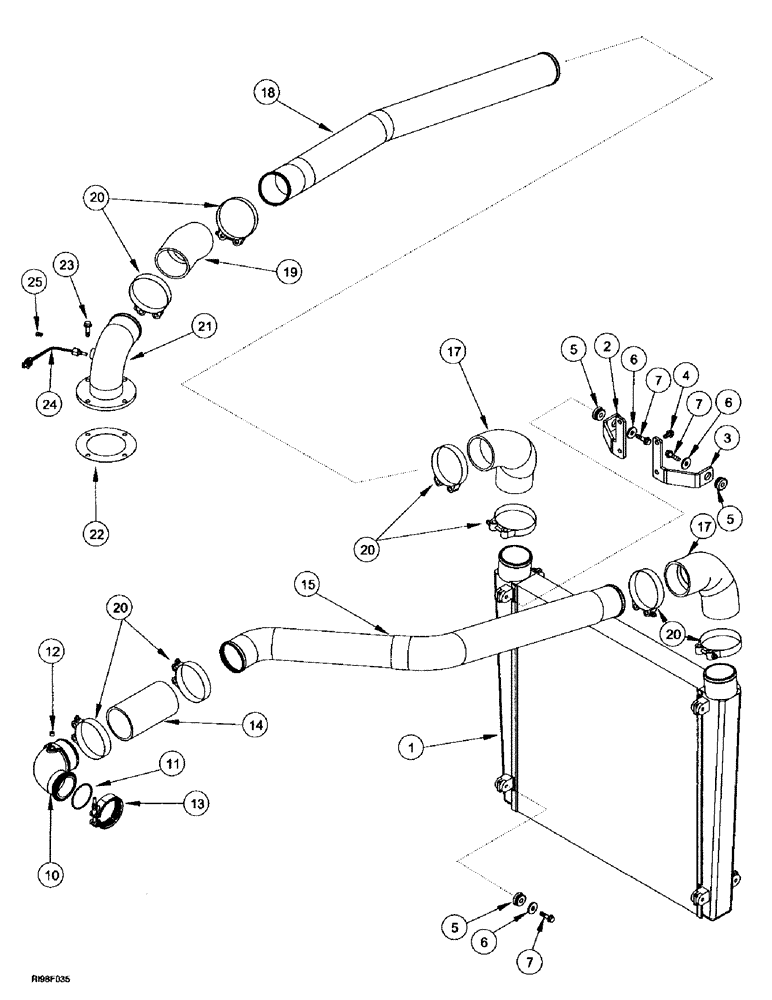

Запчасти Case IH MX240 (2-012) - AFTERCOOLER, MX200, MX220, MX240, MX270 (02) - ENGINE

1

194375A1

AFTERCOOLER

1шт.

2

255645A1

SUPPORT

BRACKET, left-hand

1шт.

3

255646A1

SUPPORT

BRACKET, right-hand

1шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

5

60-6650T1

RUBBER BUSHING

4шт.

6

396-41041

WASHER,13/32" x 1 1/8" x .134", HDN

4шт.

7

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

BOLT flange, M8 x 30; 10.9

4шт.

10

J918685

PIPE

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

J8465

PLUG

1шт.

13

J069053

CLAMP,66.54mm ID

Replaces: J69053

1шт.

14

194378A2

HOSE

1шт.

15

220849A2

TUBE

TUBE

1шт.

17

311810A1

TUBE

HOSE

2шт.

18

220850A1

TUBE

TUBE

1шт.

19

232441A1

INTAKE AIR HOSE,76.20 mm ID, SAE 20R4 Class D-1

1шт.

20

352198A1

CLAMP,90mm

8шт.

21

220851A1

ELBOW

1шт.

22

J917892

GASKET,0.79mm Thk

mounting

1шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

24

194346A1

SENSOR

air to air temperature, MX200, MX220

1шт.

25

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

MX240, MX270

1шт.
