Запчасти Case IH MX240 (6-108) - REAR AXLE, AXLE : 4-1/2 X 120 IN., MX240, MX270, N.A. ONLY (06) - POWER TRAIN

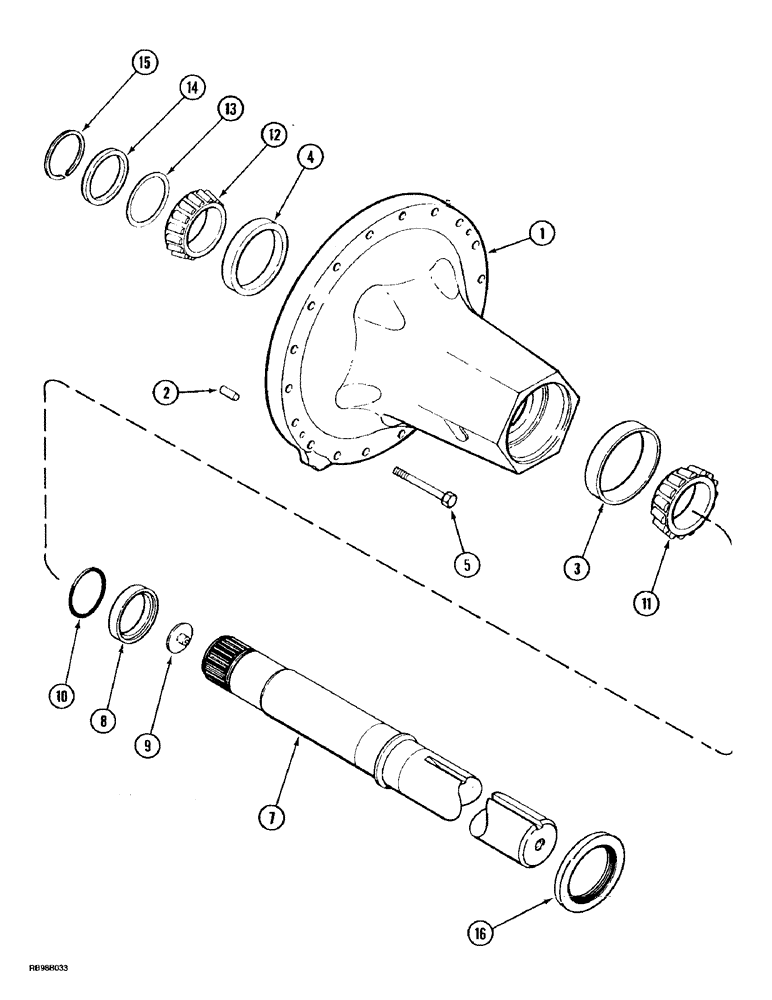

Схема запчастей Case IH MX240 - (6-108) - REAR AXLE, AXLE : 4-1/2 X 120 IN., MX240, MX270, N.A. ONLY (06) - POWER TRAIN
10
11
8
16
9
12
13
7
14
3
5
15
1
4
2

Артикул

Название

Примечание

Количество

1

245277A1

CARRIER

ASSY, Includes: Ref. 2 - 4

2шт.

2

837-16040

DOWEL,M16 x 40

2шт.

3

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

4

90-3675T1

BEARING, CUP,168.3mm OD x 30.21mm W

cup

1шт.

5

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

BOLT, M16 x 140

36шт.

7

245279A1

CARRIER

ASSY, 4-1/2 x 120", Includes: Ref. 8 - 10

2шт.

8

239529A1

BUSHING,114.91mm ID x 155mm OD x 26mm L

1шт.

9

1981270C1

INSERT

1шт.

10

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

2шт.

11

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

2шт.

12

90-3676T1

ROLLER BEARING,95.25mm ID x 41.35mm W

2шт.

13

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

1шт.

13

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

1шт.

13

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

1шт.

13

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

1шт.

13

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

1шт.

14

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

2шт.

15

243856A1

RING, SNAP

RING SNAP retaining

2шт.

16

239942A3

OIL SEAL,153mm ID x 214.31mm OD x 20.5mm Thk

2шт.

Выбрано товаров: 19
