Запчасти Case IH MX240 (6-060) - VALVE ASSEMBLY, INCHING (06) - POWER TRAIN

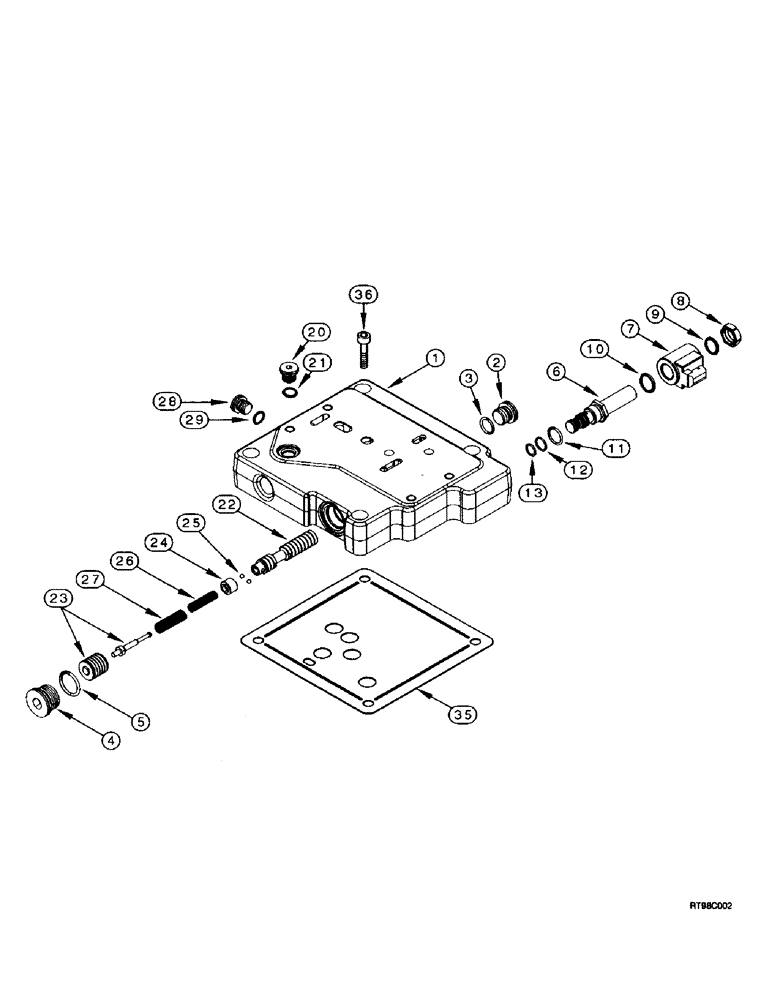

Схема запчастей Case IH MX240 - (6-060) - VALVE ASSEMBLY, INCHING (06) - POWER TRAIN
26
23
24
3
20
4
36
10
1
8
27
9
13
22
5
25
12
35
29
11
6
21
7
2
28

Артикул

Название

Примечание

Количество

302171A1

VALVE

ASSY, control, consists of: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

2

86598046

PLUG,M18 x 1.5 ORB

Includes Ref. 3

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

221580A1

PLUG,M27 x 2 ORB

Includes Ref. 5

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

239552A2

SOLENOID VALVE

SOLENOID ASSY, consists of: Ref. 6 - 13

1шт.

6

304831A1

SPOOL

Valve Solonoid

1шт.

See STX375/440 tractor P/B for service part numbers. JBedford 10/23/01

1шт.

7

304834A1

SOLENOID

COIL

1шт.

See STX375/440 tractor P/B for service part numbers. JBedford 10/23/01

1шт.

8

NSS

NOT SOLD SEPARAT

NUT

1шт.

See STX375/440 tractor P/B for service part numbers. JBedford 10/23/01

1шт.

308245A1

SEAL KIT

PACKAGE, consists of: Ref. 9 - 13

1шт.

9

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

20

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes Ref. 21

1шт.

21

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

302170A2

SPOOL

ASSY, consists of: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

25

NSS

NOT SOLD SEPARAT

BALL

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Includes Ref. 29

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

35

253385A2

GASKET,0.92mm Thk

mounting

1шт.

36

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

Выбрано товаров: 32
