Запчасти Case IH MX240 (2-008) - DEAERATION SYSTEM, MX240, MX270 (02) - ENGINE

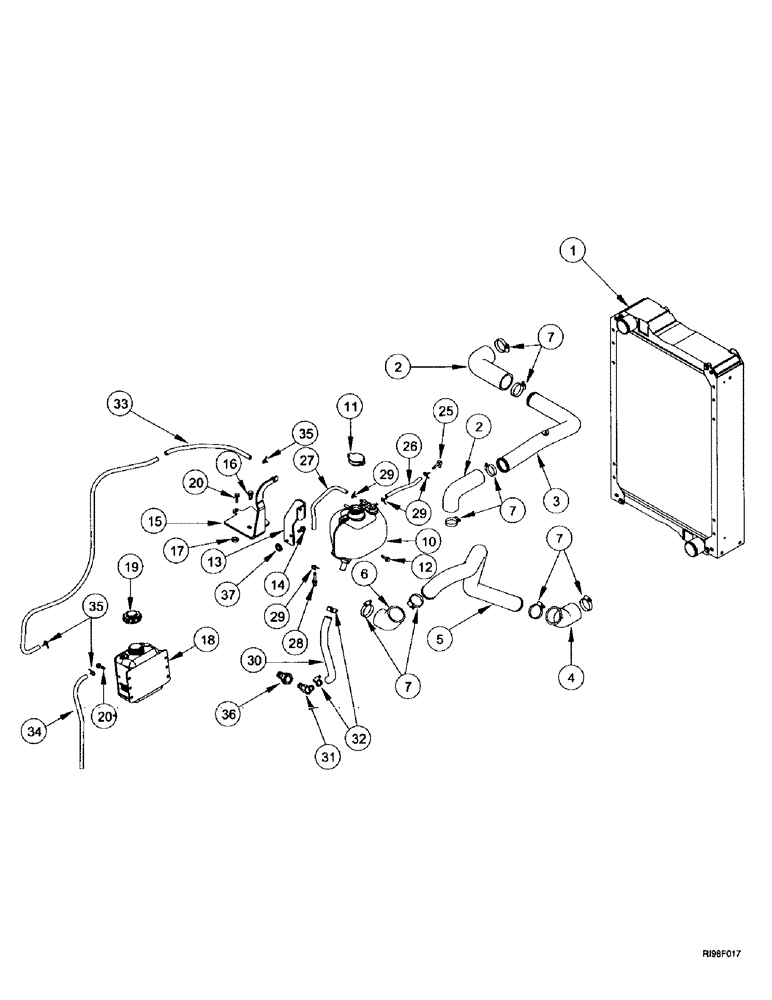

Схема запчастей Case IH MX240 - (2-008) - DEAERATION SYSTEM, MX240, MX270 (02) - ENGINE
29
29
30
12
20
7
16
7
35
2
2
28
7
27
37
11
19
33
14
1
20
6
36
18
29
7
31
15
35
25
17
5
26
3
10
32
13
34
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

RADIATOR, see Figure 2-002

1шт.

2

257281A1

LARGE HOSE

HOSE,LARGE

2шт.

3

255185A1

TUBE,150, 134 mm Length

1шт.

4

255682A1

LARGE HOSE

HOSE,LARGE

1шт.

5

315911A1

LARGE HOSE

HOSE,LARGE

1шт.

6

255683A2

HOSE

1шт.

7

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

8шт.

10

294547A1

RESERVOIR

TANK

1шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

BOLT flange, M8 x 30; 10.9

2шт.

13

304542A2

SUPPORT

BRACKET

1шт.

14

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

15

302774A1

SUPPORT

BRACKET

1шт.

16

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

BOLT flange, M10 x 25; 10.9

1шт.

17

L45450

SPACER

1шт.

18

L127093

RESERVOIR

1шт.

19

1547924C1

CAP

1шт.

20

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

BOLT flange, M8 x 30; 10.9

1шт.

25

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1/4 stem x 1/8 PT, 90 deg.

1шт.

26

242066A1

HOSE,6.35mm ID x 225mm L, SAE 30R7

1шт.

27

242067A1

HOSE,6.35 mm ID x 360.00 mm, SAE 30R7

1шт.

28

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

Adapter

1шт.

29

214-1307

HOSE CLAMP,#7, 7/16", Spring

4шт.

30

322410A1

HOSE

350 mm (13-3/4 in.) cut from 253784A1

1шт.

31

217-185

FITTING,45 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

3/4 stem x 1/2 PT, 45 deg.

1шт.

32

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

33

242069A1

HOSE,7.90 mm ID x 1800.00 mm, SAE 30R7

1шт.

34

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

1шт.

35

214-1308

HOSE CLAMP,#8, 1/2", Spring

3шт.

36

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

Выбрано товаров: 31
