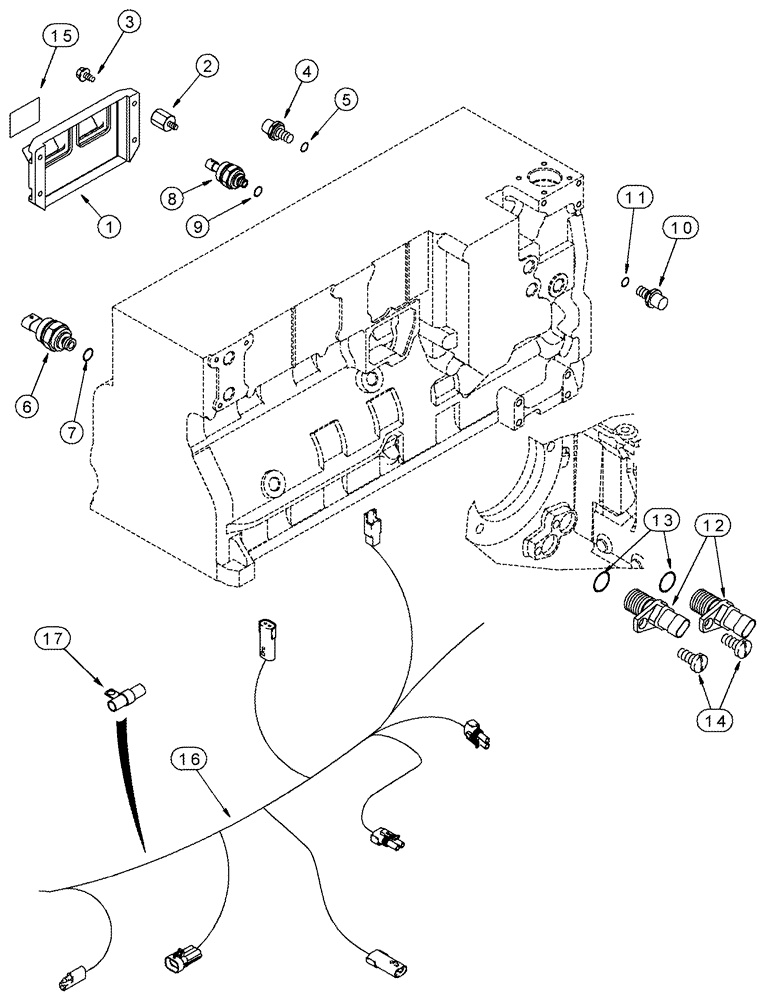

Запчасти Case IH MX240 (04-03) - MODULE, ENGINE CONTROL - MOTOR, MX240, MX270 (04) - ELECTRICAL SYSTEMS

1

J944125

ECU

Control

1шт.

MX240, MX270

1шт.

1

JR944125

REMAN-ELECT MONITOR

Reman-Monitor Control, Remanufactured

1шт.

1

JC944125

CORE-MONITOR

Return Part Number

1шт.

2

J936236

SPACER

2шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

J348747

SENSOR

Manifold Air Pressure, Includes 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

J348749

SENSOR

Engine Oil Pressure, Includes 7

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

J408345

SENSOR

Manifold Air Temperature, Includes 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Coolant temperature, Includes 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

J4002064

SENSOR

Position, Includes 13

2шт.

13

J330478

O-RING,0.07" Thk x 0.676" ID

2шт.

14

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Plate

1шт.

16

J945966

HARNESS

Includes 17

1шт.

17

J944110

SUPPRESSOR

Used With 18, 19, 20

1шт.

18

313490A1

BOLT

M10 x 14, Not Illustrated

6шт.

19

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

Not Illustrated

1шт.
