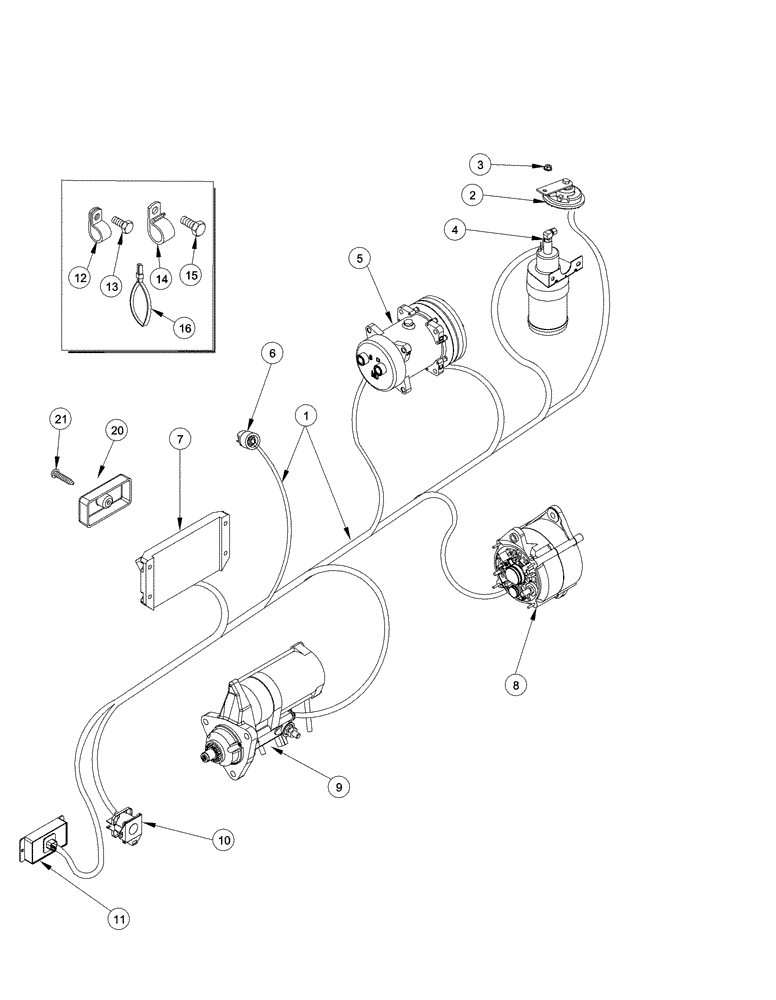

Запчасти Case IH MX240 (04-02) - HARNESS ENGINE, MX240, MX270 (04) - ELECTRICAL SYSTEMS

MX240, MX270

1шт.

1

358178A1

HARNESS

1шт.

2

237582A1

HORN

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

REF

INSTRUCTION

Solenoid Assy, Ether Start, See Figure 2-07

1шт.

5

REF

INSTRUCTION

Compressor Assy, See Page(s) 9-101

1шт.

6

1983640C1

RESTRICTION SWITCH

Air Filter Restriction

1шт.

7

REF

INSTRUCTION

Module, See Figure 4-03

1шт.

8

REF

INSTRUCTION

Alternator Assy, See Figures 4-13, 4-14

1шт.

9

REF

INSTRUCTION

Starter Assy, See Figure 4-16

1шт.

10

REF

INSTRUCTION

Solenoid, See Figure 4-17

1шт.

11

284638A2

ELEC CONNECTOR,4 Pin

1шт.

12

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

13

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

14

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

15

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

7шт.

20

279267A1

PLUG

1шт.

21

490-11016

SCREW,Cross Pan Hd, #10-32 x 1"

1шт.
