Запчасти Case IH MX240 (03-08) - FUEL FILTER AND CONNECTIONS-PUMP, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

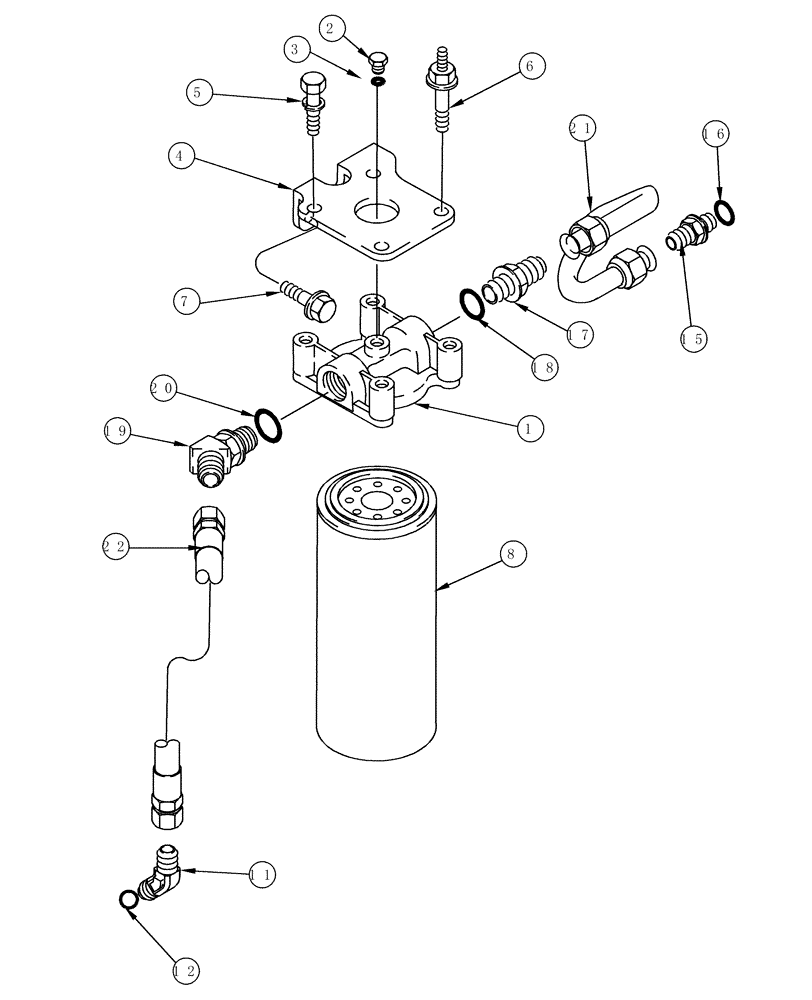

Схема запчастей Case IH MX240 - (03-08) - FUEL FILTER AND CONNECTIONS-PUMP, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
19
17
21
15
8
5
2
18
7
20
1
4
11
6
12
16
22
3

Артикул

Название

Примечание

Количество

1

J944987

HEAD

1шт.

2

J678923

PLUG,M10 x 1

10 mm, Includes 3

1шт.

3

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

4

J944845

BRACKET

1шт.

5

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

3/8 NC x 1-1/4 in

3шт.

6

J944099

STUD

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

8

J329289

FUEL FILTER

1шт.

11

311171A1

ELBOW

45 deg, Inc. 12

1шт.

12

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

311187A1

ADAPTER

Inc. 16

1шт.

16

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

3/4 OD Tube

1шт.

17

J606653

ADAPTER

Includes 18

1шт.

18

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

19

326380A1

ELBOW

Inc. 20

1шт.

20

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

21

J943442

FUEL TUBE,0.625" OD

1шт.

22

J944988

FUEL HOSE,12.00"

1шт.

Выбрано товаров: 18
