Запчасти Case IH MX240 (02-46) - GASKET KIT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

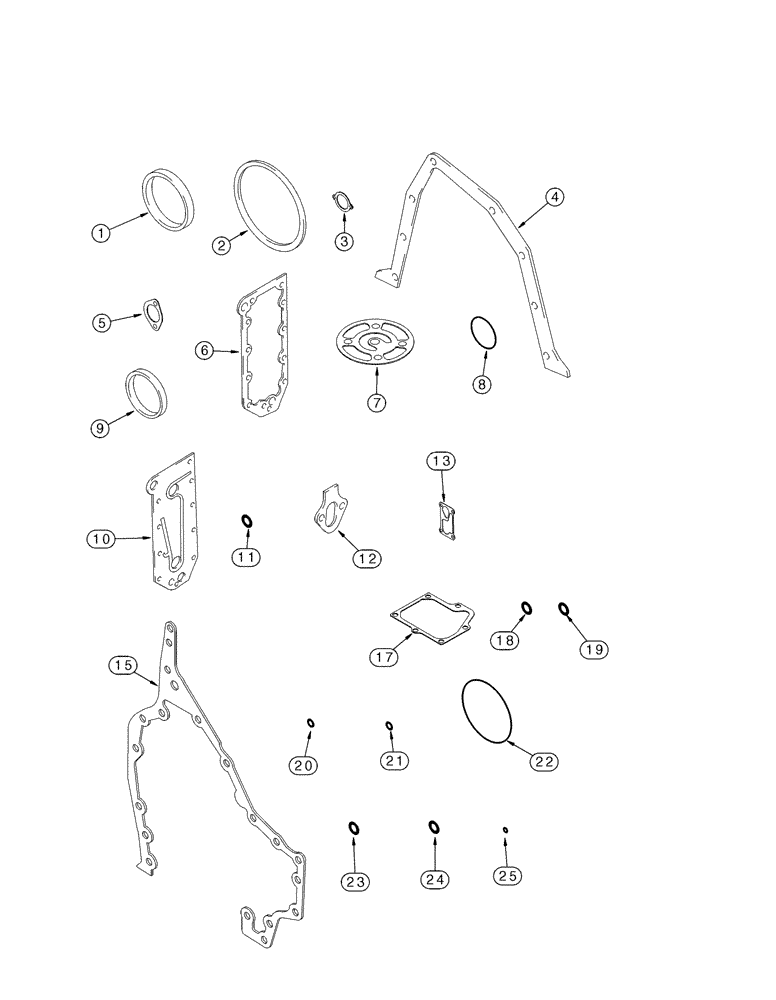

Схема запчастей Case IH MX240 - (02-46) - GASKET KIT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE
23
25
9
17
2
7
22
12
3
6
10
21
13
20
18
19
24
11
5
1
4
15
8

Артикул

Название

Примечание

Количество

A77981

GASKET KIT

Cylinder Block, Consists Of 1 - 25

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 2-15

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Figures 2-39, 2-42

6шт.

3

J913032

GASKET

See Figure 2-39

1шт.

4

J914301

GASKET

See Figure 2-40

1шт.

5

J914302

GASKET

See Figure 2-28

1шт.

6

J918174

GASKET,0.71mm Thk

See Figure 2-26

1шт.

7

J921605

GASKET

See Figure 2-26

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID, See Figure 2-39

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

See Figure 3-16

1шт.

10

J929011

GASKET,1.19mm Thk

See Figure 2-26

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16", See Figure 2-26

1шт.

12

J931059

GASKET

Replaces J931348, See Figure 2-39

1шт.

13

J937367

GASKET

See Figure 2-34

1шт.

15

J944293

GASKET,1.01mm Thk

See Figure 2-15

1шт.

17

J944683

GASKET

See Figure 2-35

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

See Figures 3-07, 3-08

2шт.

19

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

See Figures 3-07, 3-08

2шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 2-34

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 2-34

2шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

See Figure 2-13

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

See Figure 2-26

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2,2 mm, See Figure 2-39

2шт.

25

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Figs 3-07, 3-08

9шт.

Выбрано товаров: 24
