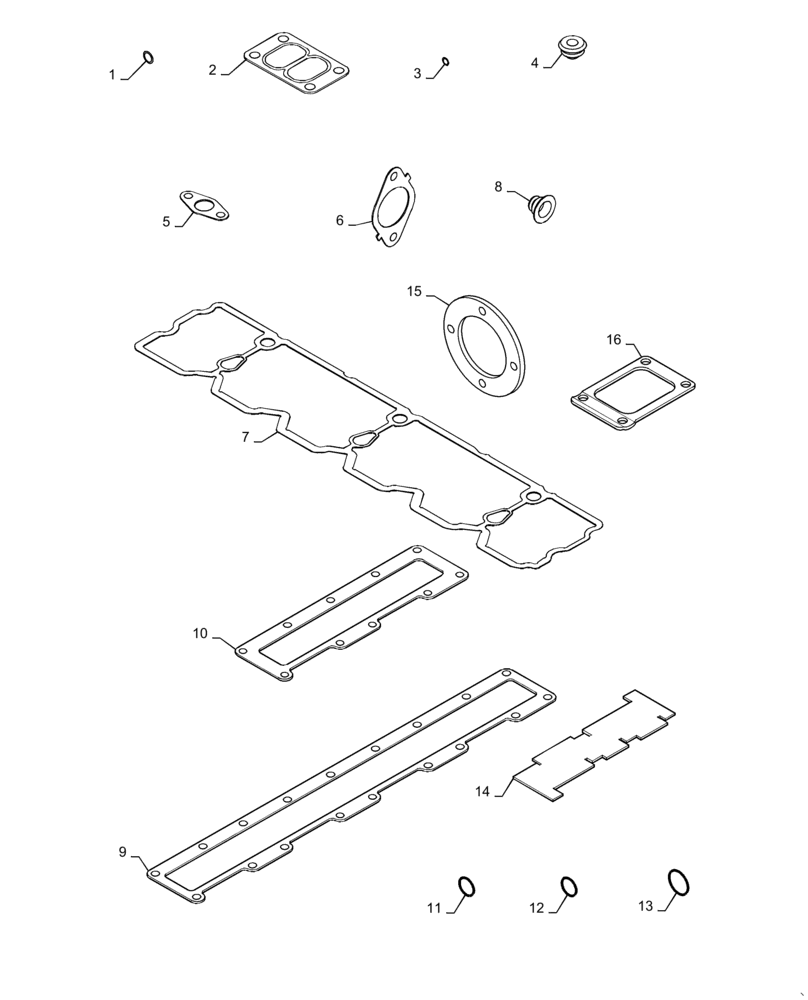

Запчасти Case IH MX240 (02-44) - GASKET KIT, MX240, MX270, 6TAA-8304 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

A77980

SPARE PART SET

Consists Of 1 - 16

1шт.

1

J867043

SEAL,1.78mm Thk x 10.82mm ID

Injector, See Figures 3-3, 3-12

6шт.

2

J901356

GASKET,0.5mm Thk

See Figure 2-44

1шт.

3

J906659

SEAL

1,5 mm, Nozzle, See Figure 3-18

6шт.

4

J942659

ISOLATOR

See Figure 2-30

5шт.

5

J285747

GASKET

See Figure 2-21

1шт.

6

J943191

MANIFOLD GASKET

Exhaust, See Figure 2-18

6шт.

7

J943303

GASKET

See Figure 2-30

1шт.

8

J943888

SEAL

Intake, Valve, See Figure 2-32

24шт.

9

J944646

MANIFOLD GASKET

Intake, See Figure 2-18

1шт.

10

J944647

GASKET

See Figure 2-18

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

See figure 2-44

2шт.

12

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 3-18

6шт.

13

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Fig 3-07

1шт.

14

J823921

GAUGE

Length

1шт.

15

J917892

GASKET,0.79mm Thk

See Figure 2-06

1шт.

16

J919369

GASKET,0.5mm Thk

See Figure 2-21

1шт.
