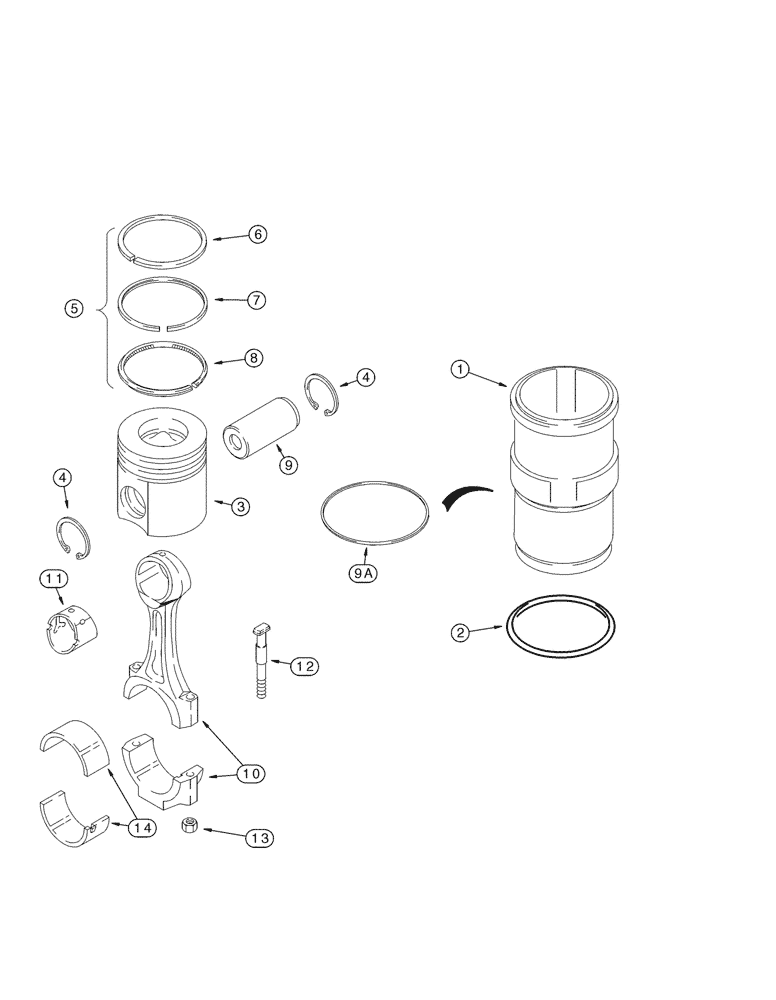

Запчасти Case IH MX240 (02-42A) - PISTONS CONNECTING RODS - MX240, MX270 (02) - ENGINE

REF

INSTRUCTION

6TAA-8304 Emissions Certified Engine

1шт.

A77901

PISTON & RINGS KIT

Standard, Consists Of 1 - 8

6шт.

1

J944344

SLEEVE CYLINDER

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J800316

PISTON & RINGS KIT

Standard, Consists Of 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

Standard, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

9

J901597

PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

J901383

CONNECTING ROD

New, Incl 10 - 13

6шт.

JR901383

REMAN-CONNECTING ROD

Remanufactured, N.A. Only, Consists Of 10 - 13

1шт.

JC901383

CORE-ROD CONNECTING

CORE-CONNECTING ROD

1шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

1шт.

12

J928870

ROD

2шт.

13

J934864

NUT

2шт.

14

A77563

BEARING SET

Standard

6шт.

14

A77564

BEARING SET

Undersize 0,25 mm

6шт.

14

A77565

BEARING SET

Undersize 0,50 mm

6шт.

14

A77566

BEARING SET

Undersize 0,75 mm

6шт.

14

A77567

BEARING SET

Undersize 1,00 mm

6шт.
