Запчасти Case IH MX240 (09-26) - CAB TRIM, CAB POSTS (09) - CHASSIS/ATTACHMENTS

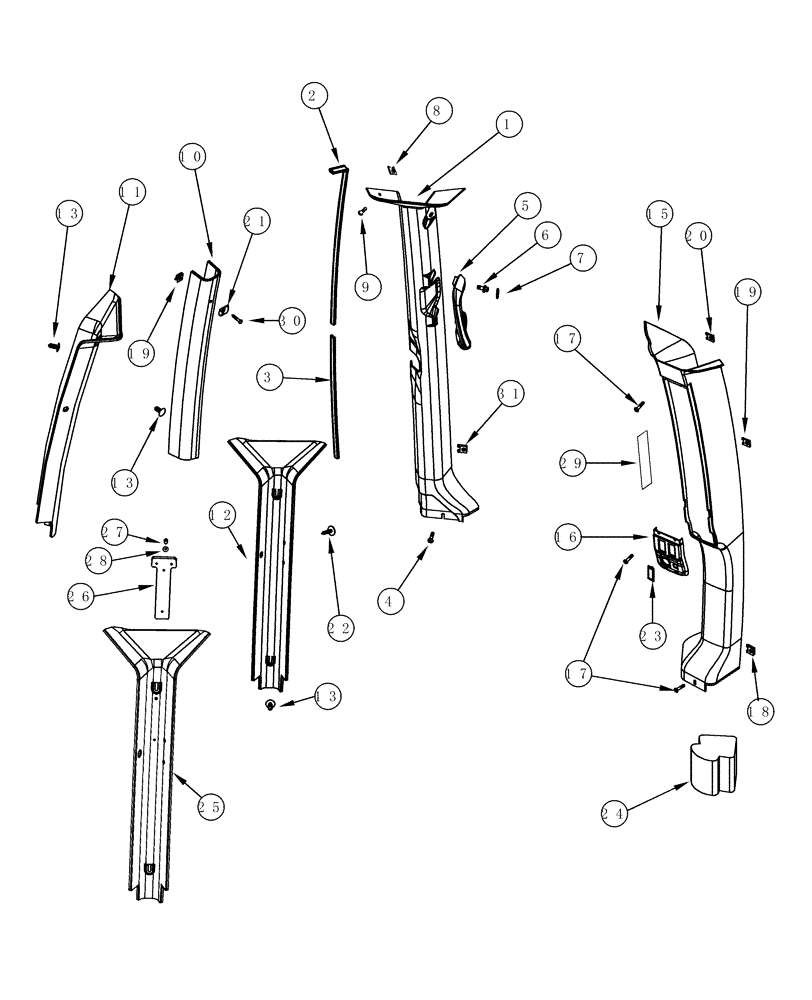

Схема запчастей Case IH MX240 - (09-26) - CAB TRIM, CAB POSTS (09) - CHASSIS/ATTACHMENTS
8
9
13
20
17
11
5
18
15
30
19
23
31
24
27
3
12
26
21
13
19
25
17
29
10
16
28
13
2
6
1
22
7
4

Артикул

Название

Примечание

Количество

1

358802A1

COVER

Left Hand, Front

1шт.

2

378041A2

ORNAMENTAL STRIP

Upper

1шт.

3

315465A1

ORNAMENTAL STRIP

Lower

1шт.

4

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

No. 10 x 3/4

1шт.

5

359034A1

HANDLE

1шт.

6

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

M6 x 13

2шт.

7

359035A1

PLUG

1шт.

8

96900C1

SPRING NUT,U, #10-16, Panel type

1шт.

9

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

1шт.

10

355100A1

COVER

Left Hand Middle

1шт.

11

355099A1

TRIM PANEL

Left Hand, Rear

1шт.

12

355098A1

TRIM PANEL

Right Hand, Rear, N.A. Only

1шт.

13

93199C1

FASTENER

5шт.

15

358800A1

STANCHION

Right Hand, Front

1шт.

16

358804A1

BEZEL

1шт.

17

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

7шт.

18

96900C1

SPRING NUT,U, #10-16, Panel type

1шт.

19

177269A1

SPRING NUT,M4.2

6шт.

20

177269A1

SPRING NUT,M4.2

2шт.

21

3234176R1

COAT HOOK

1шт.

22

333772A1

PLUG

2шт.

23

245918C1

LENS

Blank Slot

2шт.

24

336384A1

PAD

1шт.

25

358667A1

COVER

Right Hand, Rear, Europe Only, Inc. 26 - 28

1шт.

26

305688A1

HAMMER

1шт.

27

151-537

RIVET,Pop, 1/8" x .650"

1/8 x 5/8

2шт.

28

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

2шт.

29

360322A1

TAPE

305 mm, Cut From 1987208C2

2шт.

30

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

31

131-832

SPRING NUT,U, #10-16, Panel type

1шт.

Выбрано товаров: 30
