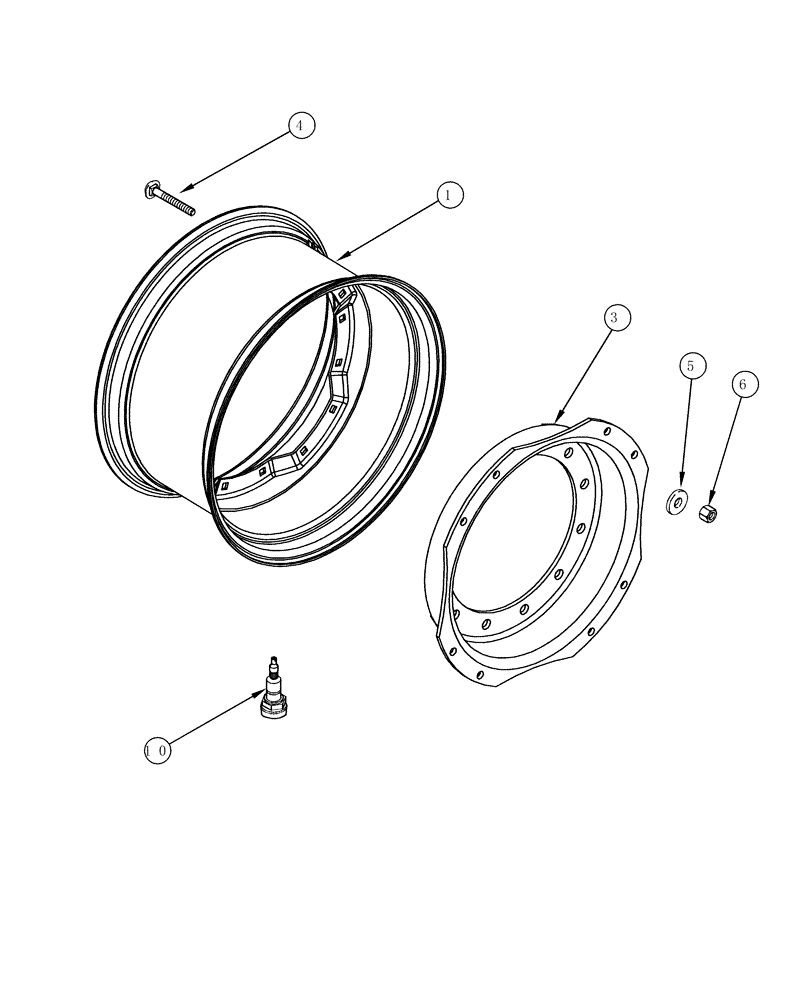

Запчасти Case IH MX240 (05-23) - FRONT WHEELS M.F.D., MX240, MX270 (05) - STEERING

188331A1

WHEEL ASSY.

MX240, MX270, For Tires 420/85R28, 16.9R28, Includes 1 - 6

2шт.

1

188333A1

RIM

WHEEL W15L x 28

1шт.

3

188328A1

WHEEL DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

188347A2

WHEEL ASSY

MX240, MX270, For Tires 600/65R28, Includes 1 - 6

2шт.

1

188350A1

RIM

WHEEL W18Lx28

1шт.

3

188328A1

WHEEL DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

188335A1

WHEEL ASSY.

MX240, MX270, For Tires 380/85R30, Includes 1 - 6

2шт.

1

188338A1

RIM

WHEEL W13x30

1шт.

3

188328A1

WHEEL DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

188339A1

WHEEL ASSY.

MX240, MX270, For Tires 480/70R30, 420/90R30, 16.9R30, Includes 1 - 6

2шт.

1

188341A1

RIM

WHEEL wheel, DW15L x 30

1шт.

3

188328A1

WHEEL DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

231997A1

WHEEL ASSY.

MX240, MX270, For Tires 380/85R34, Inc. 1 - 6

2шт.

1

231998A1

RIM

WHEEL W13x34

1шт.

3

231999A1

DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

259371A1

WHEEL ASSY.

MX240, MX270, For Tires 480/70R34, Inc. 1 - 6

2шт.

1

259416A1

RIM

WHEEL W15Lx34

1шт.

3

231999A1

DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

297465A1

WHEEL

MX240, MX270, W10x38, For Tires 320/85R38, Inc. 1 - 6

2шт.

1

297355A1

RIM

WHEEL W10x38

1шт.

3

297466A1

DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

347617A1

WHEEL

W12x38, For Tires 380/80R38, Inc. 1 - 6

2шт.

1

347618A1

RIM

WHEEL W12x38

1шт.

3

297466A1

DISC

1шт.

4

240686A1

SPECIAL BOLT,M16 x 2 x 50mm, Cl 10.9

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

829-1416

NUT,M16, Cl 10

8шт.

10

A20058

VALVE STEM

2шт.
