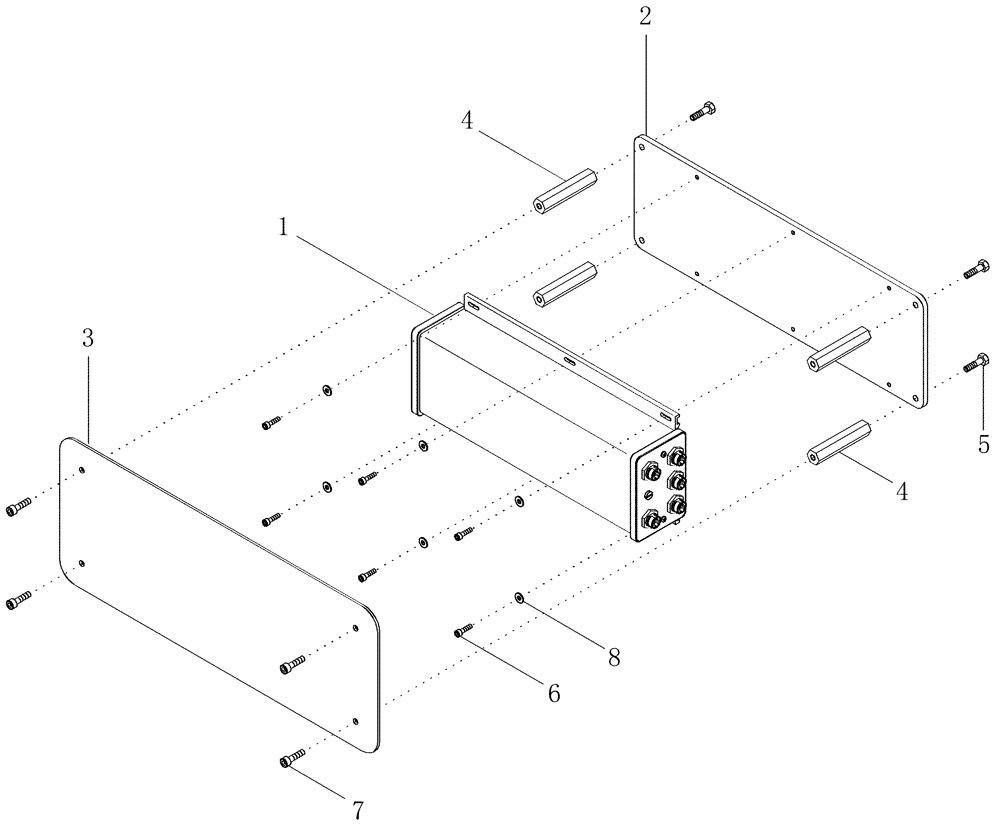

Запчасти Case IH MX230 (04-42) - ACCUGUIDE CONTROL MODULE AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

87428425

MODULE

Accuguide

1шт.

2

87423193

PLATE

Mounting

1шт.

3

87423194

COVER

(Shown), Serial Range: -05/16/2005

1шт.

3

87313018

COVER

, Start Serial: 06/17/2005

1шт.

4

87423195

SPACER

, Serial Range: -05/16/2005

4шт.

4

87313014

SPACER,M8 x 1.25

, Start Serial: 06/17/2005

4шт.

5

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

6

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

6шт.

7

565-104

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

8

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.
