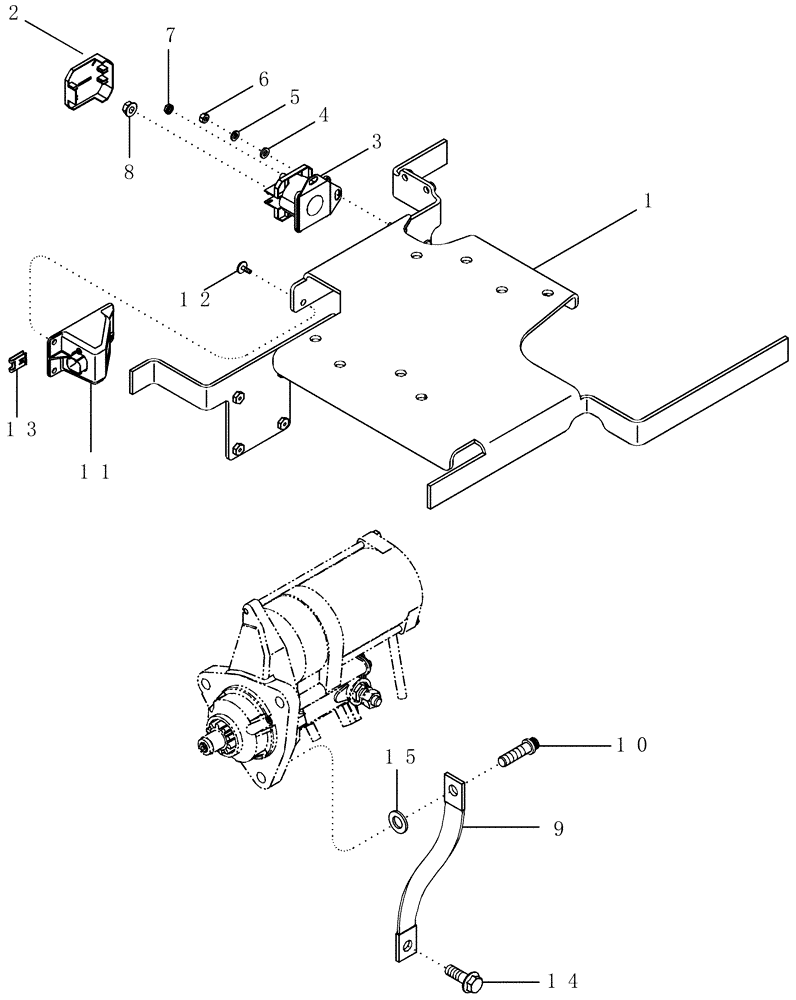

Запчасти Case IH MX230 (04-23) - SOLENOID - STARTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Support, Air Cleaner Assy

1шт.

See Figure 09-11

1шт.

2

178148A1

COVER

1шт.

3

183038A1

SOLENOID

Order 178149A1

1шт.

4

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

5

892-11006

LOCK WASHER,M6

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

7

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

84231413

GROUND STRAP

1шт.

10

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

M12 x 35; 10.9

1шт.

11

397496A1

MULTIPOLE CONNECTOR,4 Pin

Passive Terminator

1шт.

12

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

2шт.

13

131-642

SPRING NUT,Tinn, U, #10

No. 10

2шт.

14

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

12 Point, M12 x 40; 12.9

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
