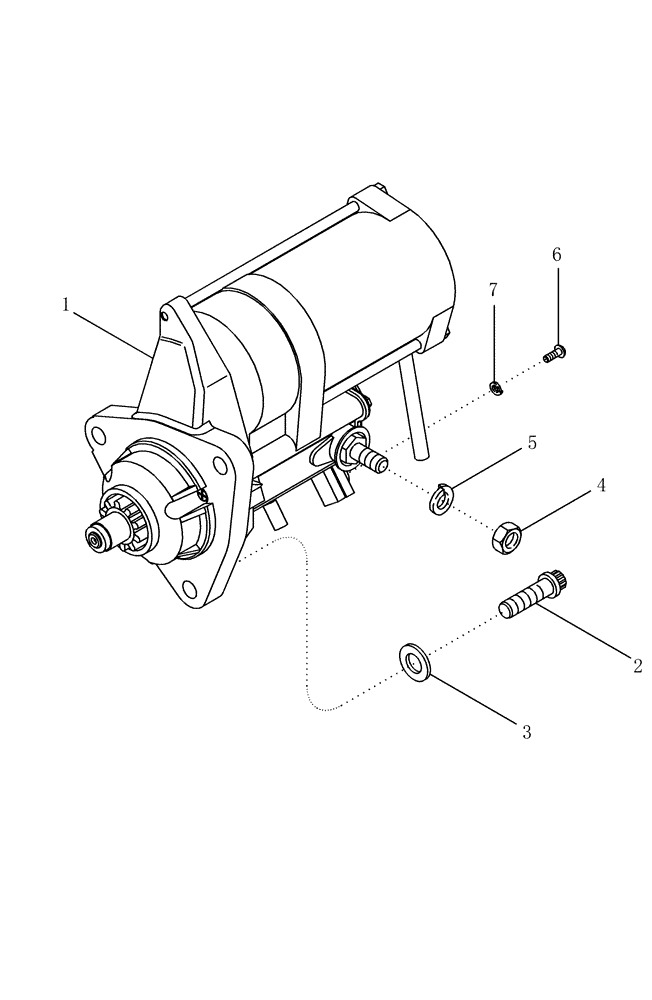

Запчасти Case IH MX230 (04-21) - STARTER - MOUNTING (04) - ELECTRICAL SYSTEMS

1

193432A2

MOTOR,12V, 4.8kW

1шт.

See Figure 04-22

1шт.

1

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

1

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number Starter 12 volt, 4.0KW

1шт.

1

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value, 12 Volt, 4 KW

1шт.

2

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

12 Point, M12 x 40; 12.9

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.
