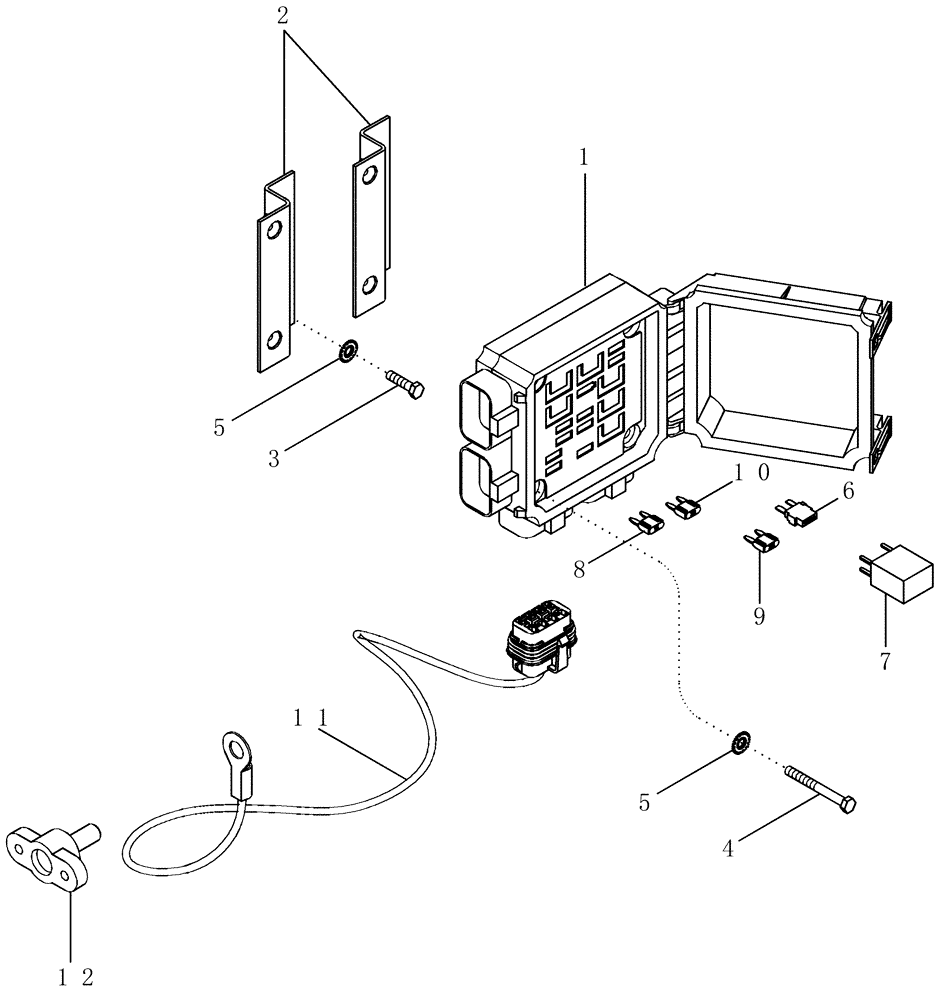

Запчасти Case IH MX230 (04-03) - POWER DISTRIBUTION (04) - ELECTRICAL SYSTEMS

1

441480A2

BOX, FUSE

Engine

1шт.

2

87410072

BRACKET

Fuse Box

2шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

No. 10 x 3/4

4шт.

4

363-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

No. 10 x 1-3/4

4шт.

5

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

8шт.

6

416569A1

DIODE ELEMENT,7300W

1шт.

7

416570A1

RELAY

5шт.

MX210

1шт.

MX230

1шт.

7

416570A1

RELAY

4шт.

MX255

1шт.

MX285

1шт.

8

121413A1

FUSE,15A, Mini, Blue

1шт.

9

121415A1

FUSE,25A, Mini, Clear

1шт.

10

121416A1

FUSE,30A, Mini, Green

1шт.

11

441479A2

HARNESS

Tractor Auxiliary Power

1шт.

12

441483A1

TERMINAL CONNECTOR

Auxiliary Power

1шт.
