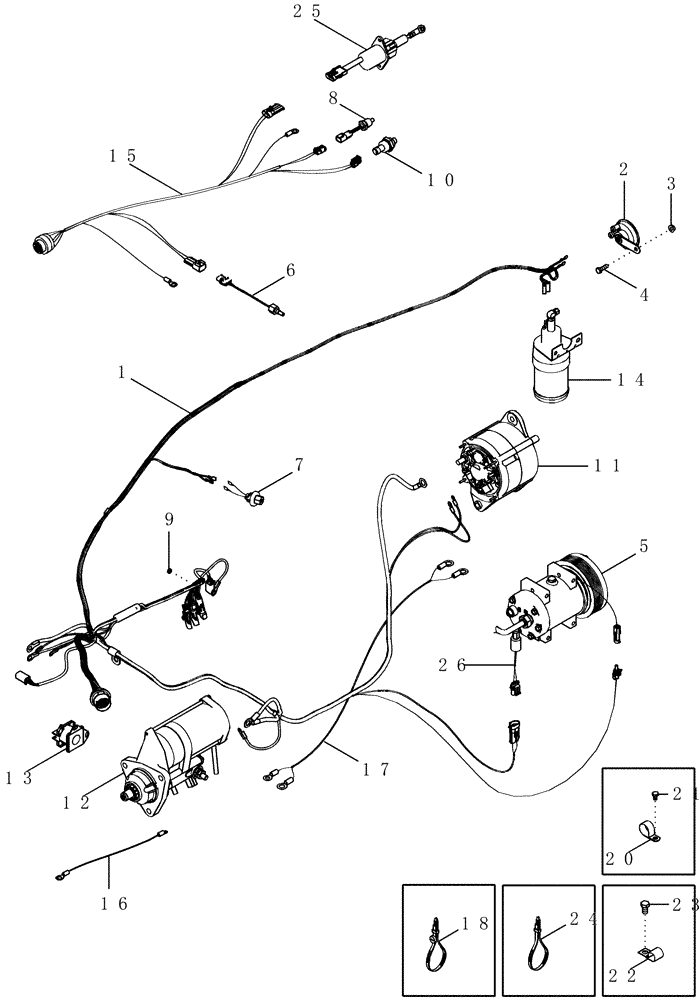

Запчасти Case IH MX230 (04-01) - HARNESS - ENGINE, MX210 AND MX230 (04) - ELECTRICAL SYSTEMS

1

87403845

HARNESS

Engine, Serial Range: -JAZ135316

1шт.

1

87452521

HARNESS

Engine, Start Serial: JAZ135316

1шт.

2

87049215

HORN

1шт.

3

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

REF

INSTRUCTION

Compressor Assy

1шт.

See Figure 09-42

1шт.

6

194346A1

SENSOR

Air to Air Temperature

1шт.

7

79081900

SENSOR

Air Filter

1шт.

8

87403454

TEMPERATURE SENDER,1/2" - 14

Coolant

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

10

405439A1

PRESSURE SWITCH

Oil

1шт.

11

REF

INSTRUCTION

Alternator Assy, Serial Range: -JAZ135316

1шт.

See Figure 04-18

1шт.

11

REF

INSTRUCTION

Alternator Assy, Start Serial: JAZ135316

1шт.

See Figure 04-19

1шт.

12

REF

INSTRUCTION

Starter Assy

1шт.

See Figure 04-21

1шт.

13

REF

INSTRUCTION

Solenoid

1шт.

See Figure 04-23

1шт.

14

REF

INSTRUCTION

Solenoid Assy, Ether Start

1шт.

See Figure 02-07

1шт.

15

86983668

HARNESS

Engine Adapter

1шт.

16

86983670

HARNESS,1150mm L

Alternator to Starter, Serial Range: -JAZ135316

1шт.

16

87452818

HARNESS

1550mm L, Alternator to Starter, Start Serial: JAZ135316

1шт.

17

86985347

HARNESS

Solenoid to Starter

1шт.

18

87403339

CABLE TIE

CABLE STRAP

2шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

23

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

25

REF

INSTRUCTION

Solenoid, Fuel Shutoff

1шт.

See Figure 03-07

1шт.

26

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.
