Запчасти Case IH MX230 (09-36A) - POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS

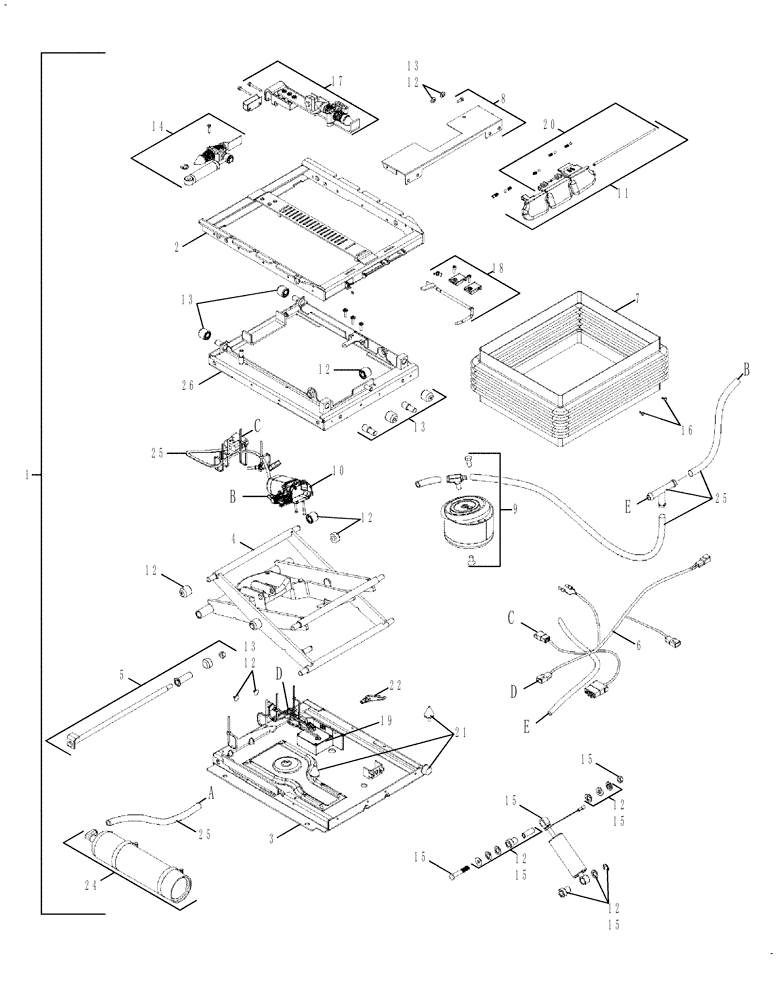

Схема запчастей Case IH MX230 - (09-36A) - POSITIVE RESPONSE SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS
d
13
6
13
18
12
22
1
17
12
15
16
c
15
25
19
a
14
b
7
9
20
b
12
26
8
c
15
d
15
12
15
12
11
25
3
2
12
e
13
12
13
5
12
15
10
25
21
4
24
e

Артикул

Название

Примечание

Количество

1

87395381

SUSPENSION

Positive Response, Inc. 2 - 26

1шт.

2

87395392

HOUSING

Upper

1шт.

3

86994256

HOUSING

Lower

1шт.

4

86994258

ARM

Scissor

1шт.

5

302033A1

SHAFT

Scissor Arm

1шт.

6

87347944

SERVICE KIT

Harness, See Figure: 09-24

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

Upper Housing

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Compessor

1шт.

11

87407047

SERVICE KIT

Knobs

1шт.

12

87347945

BEARING ASSY

Suspension Bearing and Rollers

1шт.

13

87347946

SERVICE KIT

Isolator Rollers

1шт.

14

87395394

SERVICE KIT

Lateral Isolator Shock Absorber

1шт.

15

86994260

SERVICE KIT

Shock

1шт.

16

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

17

87395395

KIT

Fore and Aft Shock Absorber

1шт.

18

373470A2

KIT

Fore and Aft Isolator Control

1шт.

19

87395396

DAMPER

Control Kit

1шт.

20

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

21

333295A1

BUMPER

Suspension Bumper

1шт.

22

86994267

LEVER

Dampener Control

1шт.

23

333296A1

SERVICE KIT

Fore and Aft Isolator Shock Block (Not Shown)

1шт.

24

87347960

SERVICE KIT

Air Tank

1шт.

25

87396231

SERVICE KIT

Air Tank, Airline & Fitting

1шт.

26

87395393

HOUSING

Upper

1шт.

Выбрано товаров: 26
