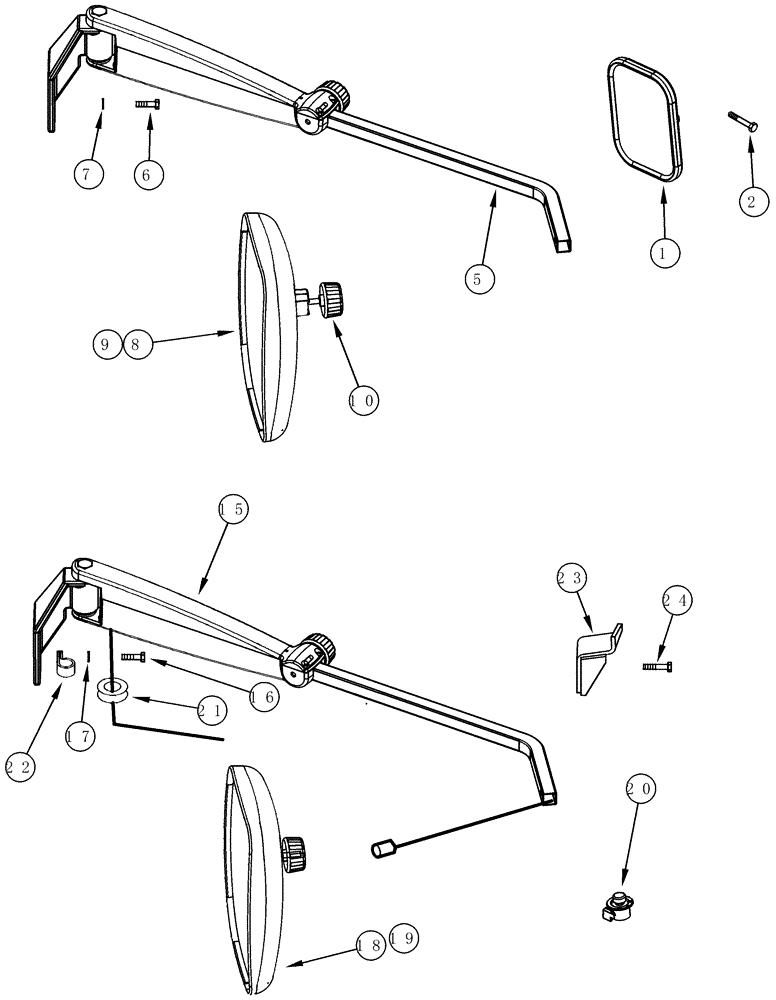

Запчасти Case IH MX230 (09-21) - MIRRORS - BSN Z7RZ01152 (09) - CHASSIS/ATTACHMENTS

1

235992A1

MIRROR

Interior

1шт.

2

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

M6,3 x 16

2шт.

5

297024A2

ARM

Right Hand, Shown

1шт.

5

297025A2

ARM

Left Hand

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

297017A1

MIRROR

Inc. 9, 10

2шт.

9

324437A1

REPLACEMENT MIRROR

1шт.

10

324439A1

BUTTON

1шт.

15

297026A2

ARM ASSY.

Right Hand, Shown Remote Control

1шт.

15

297027A2

ARM ASSY.

Left Hand

1шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

297021A1

MIRROR,239mm x 328.199mm

Remote Control, Inc.19

2шт.

19

324437A1

REPLACEMENT MIRROR

1шт.

20

280627A1

SWITCH, MIRROR ADJUS

Remote Control

1шт.

21

182045A1

GROMMET

2шт.

22

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

23

375261A1

BRACKET

Right Hand, Shown, Serial Range: -JAZ131821

1шт.

23

374653A1

BRACKET

Left Hand, Serial Range: -JAZ131821

1шт.

24

514-637

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

, Serial Range: -JAZ131821

2шт.
