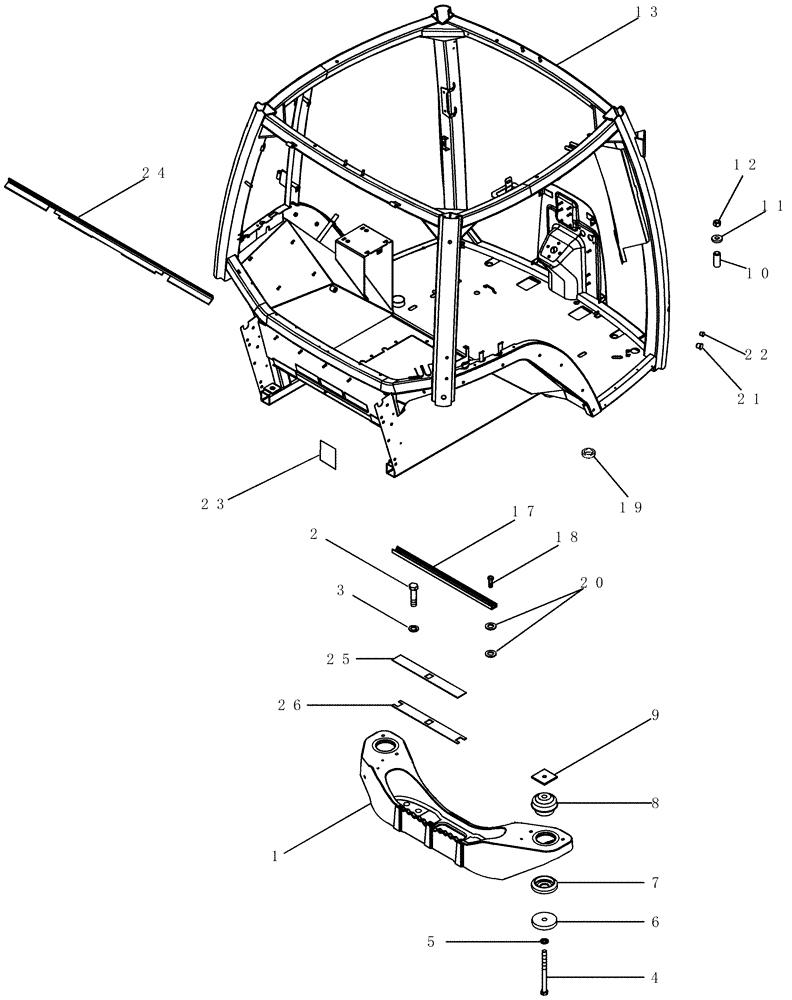

Запчасти Case IH MX230 (09-12) - CAB - MOUNTING AND FRAME, TRANSMISSION BSN AJB0355923 (09) - CHASSIS/ATTACHMENTS

1

255238A4

BRACKET

1шт.

2

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

8шт.

3

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

8шт.

4

86987599

BOLT

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Front Mount

2шт.

6

87562943

SPACER,17.5mm ID x 95.2mm OD x 16.12mm L

16 mm

4шт.

7

1286903C1

INSULATOR BLOCK

Bottom

4шт.

8

192337A1

ISOLATOR,101.6mm OD x 73.7mm L

Top

4шт.

9

86985936

PLATE

4шт.

10

184262A1

SPACER

4шт.

11

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

4шт.

12

829-1416

NUT,M16, Cl 10

4шт.

13

NSS

NOT SOLD SEPARAT

Cab, Frame

1шт.

17

299432A1

BAR

1шт.

18

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

19

182220A1

GROMMET

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

21

128209A1

PLUG

4шт.

22

353-432

PLUG,7/8" Hole, Nylon

2шт.

23

324053A1

DECAL

1шт.

24

359321A1

GUARD

1шт.

25

450986A1

SPACER

Upper

1шт.

26

450931A1

SPACER

Lower

1шт.
