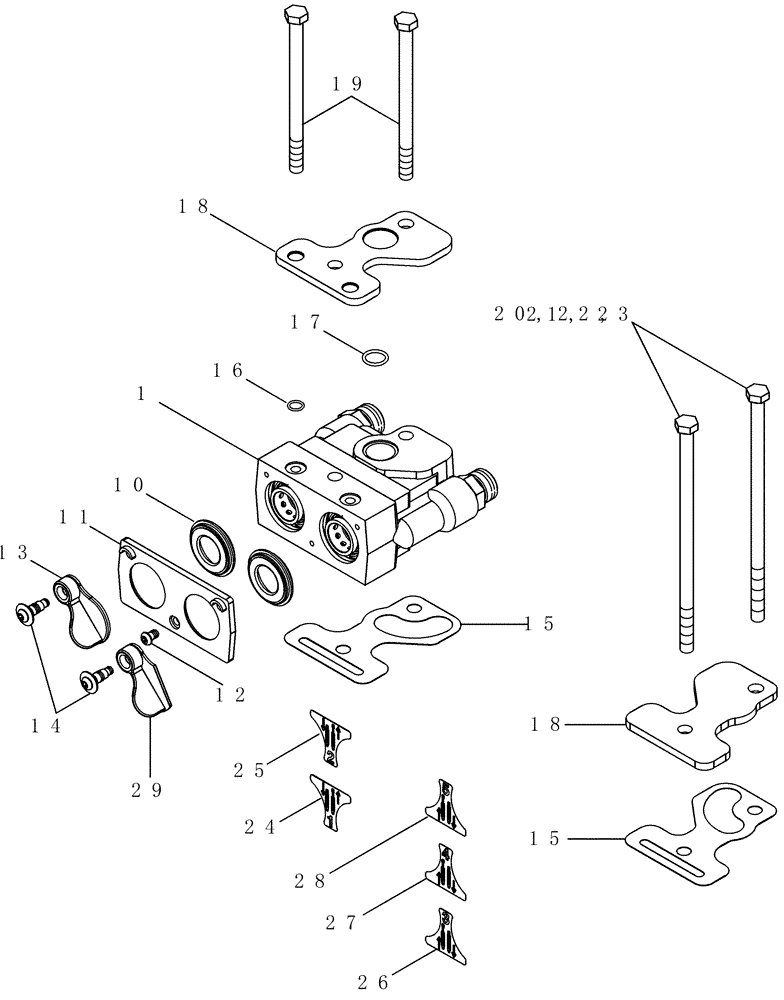

Запчасти Case IH MX230 (08-24) - REMOTE HYDRAULIC COUPLING MOUNTING (08) - HYDRAULICS

1

275182A2

HYDRAULIC VALVE

1шт.

See Figure 08-25

1шт.

10

240969A1

SEAL,22.9mm ID x 46.2mm OD x 8.07mm Thk

1шт.

11

240971A2

PLATE

1шт.

12

240970A2

HEX SOC SCREW,BTN HD, M6 x 1 x 10mm

1шт.

13

240974A2

DOOR COVER

1шт.

14

240973A2

CAPTIVE WASHER SCREW,Hex Flng, M16 x 1 x 25mm

1шт.

15

84170594

GASKET,0.44mm Thk

2шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

258671A2

PLATE

2шт.

19

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

21

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

3 circuits

2шт.

22

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

4 Circuits

2шт.

23

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

M10 x 205, 5 Circuits

2шт.

24

284327A1

DECAL

Coupler 1

1шт.

25

284328A1

DECAL

Coupler 2

1шт.

26

284329A1

DECAL

Coupler 3

1шт.

27

284330A1

DECAL

Coupler 4

1шт.

28

284331A1

DECAL

Coupler 5

1шт.

29

387611A1

DUST CAP

1шт.
