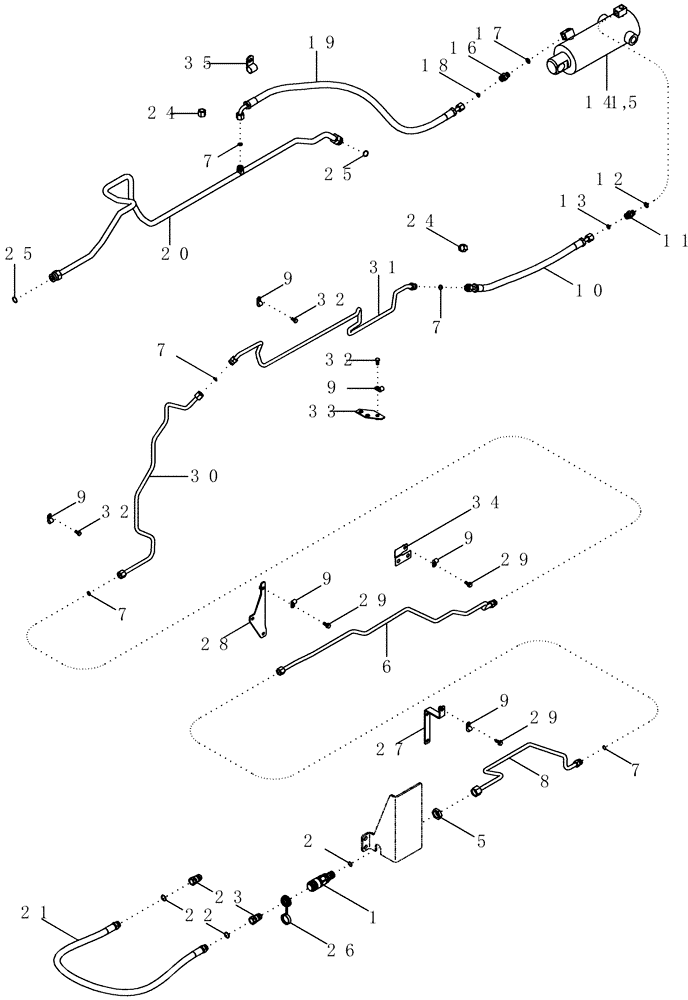

Запчасти Case IH MX230 (08-12) - HYDRAULIC SYSTEM - FRONT HITCH (08) - HYDRAULICS

1

257481A2

COUPLING

Inc. 2

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

701-919

BHD LOCK NUT,1" - 14

1шт.

6

446643A1

TUBE

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

8

86984904

TUBE,0.50" OD

1шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

5шт.

10

353711A1

HOSE

1шт.

11

353695A1

FITTING

4 mm Orifice, Inc. 12, 13

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

348474A1

CYLINDER ASSY.

Inc. 29

1шт.

15

281456A1

SEAL KIT

1шт.

16

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 17, 18

1шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

359879A1

HOSE

1шт.

20

433386A1

PIPE

1шт.

21

359851A1

HOSE,12.70 mm ID x 1100.00 mm

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

23

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

2шт.

24

701-905

CAP,13/16" - 16

13/16 NF, If Equipped

2шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

26

1954146C1

CAP

1шт.

27

446773A1

BRACKET

1шт.

28

446775A1

BRACKET

1шт.

29

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

30

384571A1

PIPE

1шт.

31

353703A1

HYD TUBE

1шт.

32

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

33

353693A1

SUPPORT

1шт.

34

362976A1

SUPPORT

1шт.

35

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.
