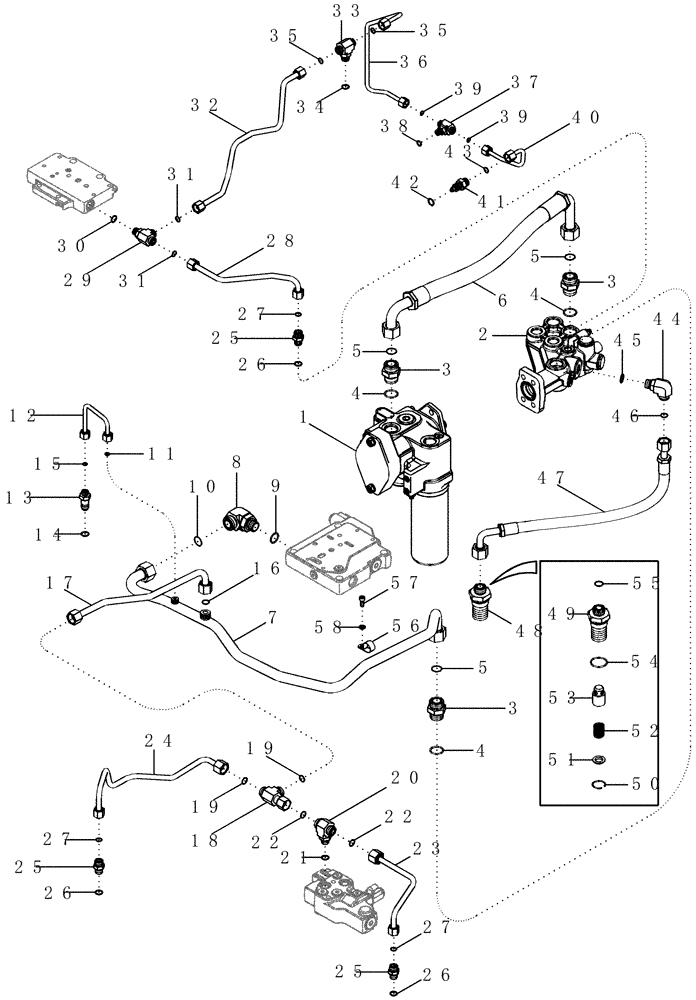

Запчасти Case IH MX230 (08-08) - HYDRAULIC SYSTEM - TRANSMISSION LUBE (08) - HYDRAULICS

1

401363A3

PUMP

Charge

1шт.

87483992R

REMAN-HYD PUMP

MX210, MX230, MX255, MX285, Reman For New P/N's 401363A3 & 87483992

1шт.

87483992C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

401600A1

HEAD ASSY.

Filter

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 Or, Inc. 4, 5

3шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

6

451064A1

HOSE,25.4mm ID x 680mm L

1шт.

7

87415008

HYD TUBE

1шт.

8

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

1-7/16 fc sl x 27 Or, Inc. 9, 10

1шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

434850A1

TUBE

1шт.

13

308181A1

FITTING

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

84155095

HOSE,15.88mm ID x 432mm L

PTO and Brake Lube

1шт.

18

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1 fc sl x 1 sw, Inc. 19

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

1 fc sl x 18 Or, Inc. 21, 22

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

450509A1

TUBE

1шт.

24

450510A1

HYD TUBE

1шт.

25

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 26, 27

3шт.

26

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

451060A1

HYD TUBE

1шт.

29

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 30, 31

1шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

437336A1

TUBE

, Serial Range: -AJB0355923

1шт.

32

437336A2

TUBE

, Start Serial: AJB0355923

1шт.

33

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/16 fc sl x 18 Or, Inc. 34, 35

1шт.

34

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

282275A1

TUBE,0.375" OD, 307, 96 mm Length

1шт.

37

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

11/16 fc sl x 14 Or, Inc. 38, 39

1шт.

38

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

40

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

1шт.

41

93105C1

UNION

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

44

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 45, 46

1шт.

45

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

46

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

47

442847A1

HOSE,15.88mm ID x 655mm L

1шт.

48

407616A2

VALVE,M42 x 2

Inc. 48 - 54

1шт.

49

407615A2

VALVE BODY

1шт.

50

107452A1

CIRCLIP

1шт.

51

107456A1

CUP WASHER

1шт.

52

431858A1

SPRING

1шт.

53

NSS

NOT SOLD SEPARAT

Plunger

1шт.

54

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

(1-1/2 ID x 7/64)

1шт.

55

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

56

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

57

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

58

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
