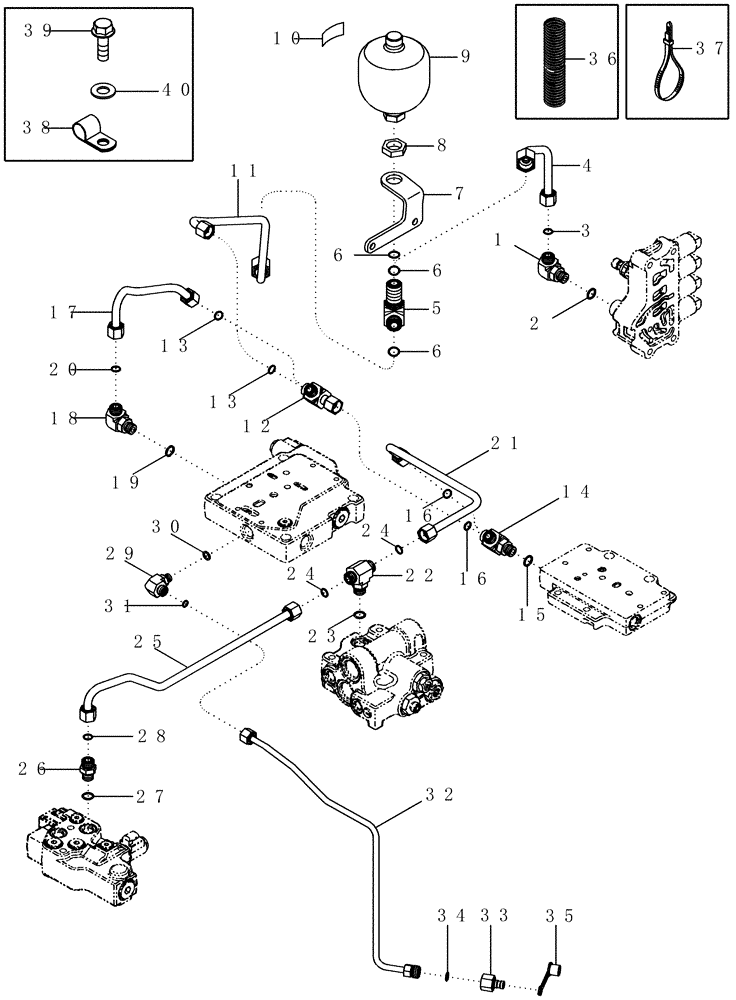

Запчасти Case IH MX230 (08-06) - HYDRAULIC SYSTEM - REGULATED PRESSURE (08) - HYDRAULICS

1

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl. 2, 3

1шт.

2

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

87405121

HYD TUBE,.5" OD

1шт.

5

87552811

TEE,1"-14

Inc. 6

1шт.

6

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

7

86988829

BRACKET

1шт.

8

701-919

BHD LOCK NUT,1" - 14

1шт.

9

87730802

ACCUMULATOR,0.75L

1шт.

10

82029752

DECAL

1шт.

11

86988918

TUBE,0.50" OD

1шт.

12

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

Inc. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 15, 16

1шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

308172A1

TUBE,0.5" OD, 158, 37 mm Length

1шт.

18

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 19, 20

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

433589A1

TUBE

1шт.

22

86579710

TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br

Inc. 23, 24

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

450512A1

TUBE

1шт.

26

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl. 27, 28

1шт.

27

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Inc. 30, 31

1шт.

30

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

32

451059A1

TUBE

1шт.

33

322529A1

COUPLING

Diagnostic

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

143349A1

DUST CAP

1шт.

36

87413833

CONDUIT

(If Equipped)

1шт.

37

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP (If Equipped)

2шт.

38

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

39

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

40

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

41

84270891

DECAL

Warning

1шт.
