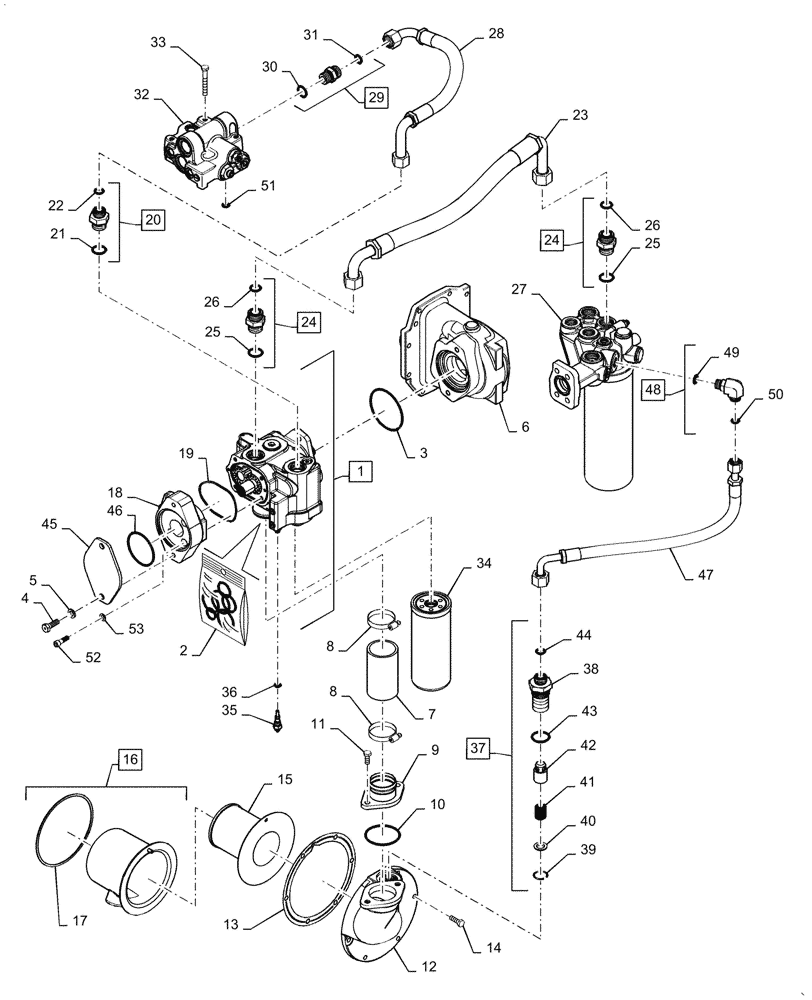

Запчасти Case IH MX230 (08-03) - HYDRAULIC SYSTEM - CHARGE PUMP (08) - HYDRAULICS

1

87483992

PUMP,69.15 CC

Charge, Incl 2, 4, 5, 18, 19, 45, 46, 52, 53

1шт.

1

87483992R

REMAN-HYD PUMP

MX210, MX230, MX255, MX285

1шт.

1

87483992C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87407008

SERVICE KIT

1шт.

3

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

4

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

5

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

6

389550A1

HOUSING

1шт.

See Figure 06-44

1шт.

7

407386A1

HOSE

1шт.

8

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2шт.

9

407364A1

ADAPTER

1шт.

10

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

12

403416A1

COVER

1шт.

13

139241C5

GASKET,0.79mm Thk

1шт.

14

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

15

1348335C1

SCREEN

1шт.

16

1348337C1

SHROUD

Incl 17

1шт.

17

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

1шт.

18

87483993

COVER

1шт.

19

87487899

GASKET

1шт.

20

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 21, 22

1шт.

21

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

451064A1

HOSE,25.4mm ID x 680mm L

1шт.

24

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 25, 26

2шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

401600A1

HEAD ASSY.

Filter

1шт.

28

433585A1

HOSE ASSY.,19.1mm ID x 513mm L, SAE 100R2

1шт.

29

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 30, 31

1шт.

30

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

404438A5

VALVE

Priority, Serial Range: -AJB0304793

1шт.

See Figure 08-17

1шт.

32

87427822

VALVE

Priority, Start Serial: AJB0304793

1шт.

See Figure 08-17

1шт.

33

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

3шт.

34

402652A1

HYDRAULIC OIL FILTER

1шт.

35

1957801C1

PRESSURE SWITCH

Indicator Assy, Elect

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

407616A2

VALVE,M42 x 2

Lube Relief, Incl 38 - 44

1шт.

38

407615A2

VALVE BODY

1шт.

39

107452A1

CIRCLIP

1шт.

40

107456A1

CUP WASHER

1шт.

41

431858A1

SPRING

1шт.

42

NSS

NOT SOLD SEPARAT

Plunger

1шт.

43

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

44

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

45

NSS

NOT SOLD SEPARAT

COVER, Incl in 1

1шт.

46

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

47

442847A1

HOSE,15.88mm ID x 655mm L

1шт.

48

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 49, 50

1шт.

49

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

51

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

52

NSS

NOT SOLD SEPARAT

BOLT, Incl in 1

4шт.

53

NSS

NOT SOLD SEPARAT

WASHER, Incl in 1

4шт.
