Запчасти Case IH MX230 (06-24) - RANGE TRANSMISSION - MASTER CLUTCH (06) - POWER TRAIN

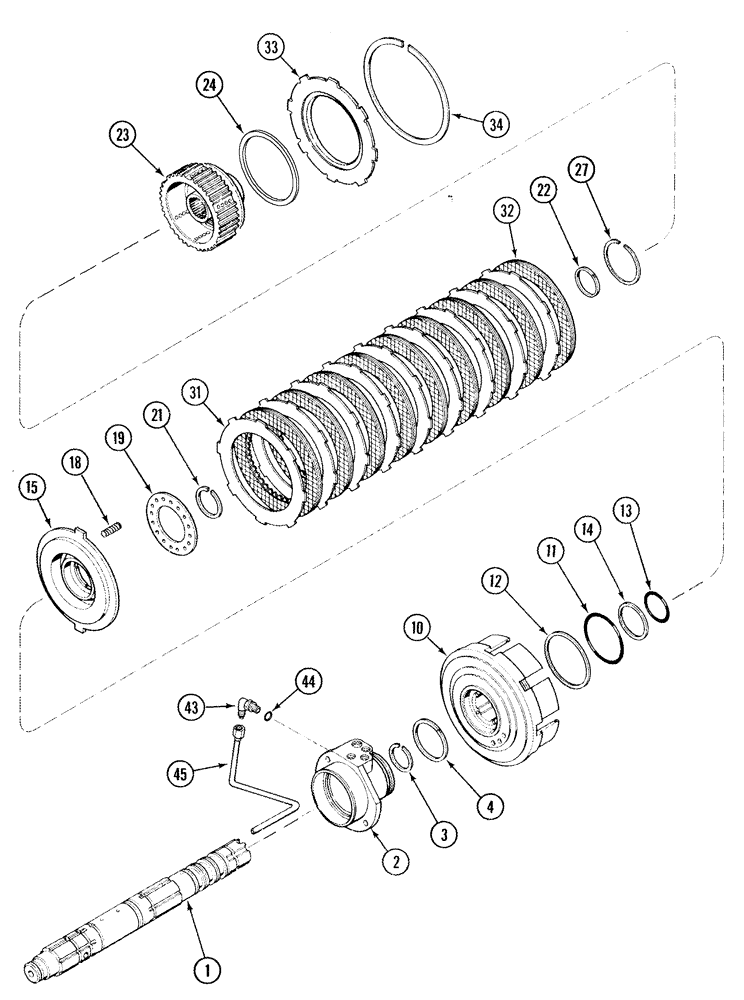

Схема запчастей Case IH MX230 - (06-24) - RANGE TRANSMISSION - MASTER CLUTCH (06) - POWER TRAIN
1
3
11
19
32
15
4
22
44
27
24
12
21
34
14
43
13
45
23
2
18
31
10
33

Артикул

Название

Примечание

Количество

1

1997446C2

SHAFT ASSY.

1шт.

See Figure 06-22

1шт.

Transmission BSN AJB0361241

1шт.

1

87434653

SHAFT ASSY.

1шт.

See Figure 06-23

1шт.

Transmission ASN AJB0361241

1шт.

2

254337A2

CAGE

1шт.

3

101-11225

SNAP RING,#225, Ext

1шт.

4

1286027C2

RING,91.31mm ID x 95.31mm OD x 2.87mm Thk

1шт.

10

243091A1

CARRIER

1шт.

11

93138C1

RING,1.78mm Thk x 114.02mm ID, -47, 60 Duro

1шт.

12

92562C1

RING,120.46mm ID x 123.5mm OD x 2.28mm Thk

1шт.

13

93137C1

RING,1.78mm Thk x 72.75mm ID, -40, 60 Duro

1шт.

14

92561C1

RING,78.46mm ID x 81.5mm OD x 2.28mm Thk

1шт.

15

112299A2

PISTON ASSY

1шт.

18

93136C2

SPRING,18.29mm OD x 35.82mm L

16шт.

19

112329A2

RETAINER

1шт.

Transmission BSN AJB0303751

1шт.

19

112329A3

RETAINER

1шт.

Transmission ASN AJB0303751

1шт.

21

100-11306

SNAP RING,#306, Ext

1шт.

22

92555C1

RING,Locking, 63.81mm ID x 67.81mm OD x 2.87mm Thk

1шт.

23

235913A2

HUB

1шт.

Transmission BSN AJB0303751

1шт.

23

235913A3

HUB

1шт.

Transmission ASN AJB0303751

1шт.

24

235987A1

RING,146.5mm ID x 150.5mm OD x 2.87mm Thk

1шт.

27

100-11200

SNAP RING,#200, Ext

1шт.

31

1285974C1

BRAKE PLATE

Separator

9шт.

32

1285975C2

CLUTCH DISC

CLUTCH DISK Friction

9шт.

33

235851A2

DISC,151.3mm ID x 244mm OD x 13mm Thk

Backing

1шт.

34

1963876C1

SNAP RING,249mm OD, Internal

1шт.

43

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Inc. 44

1шт.

45

1963935C2

TUBE

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
