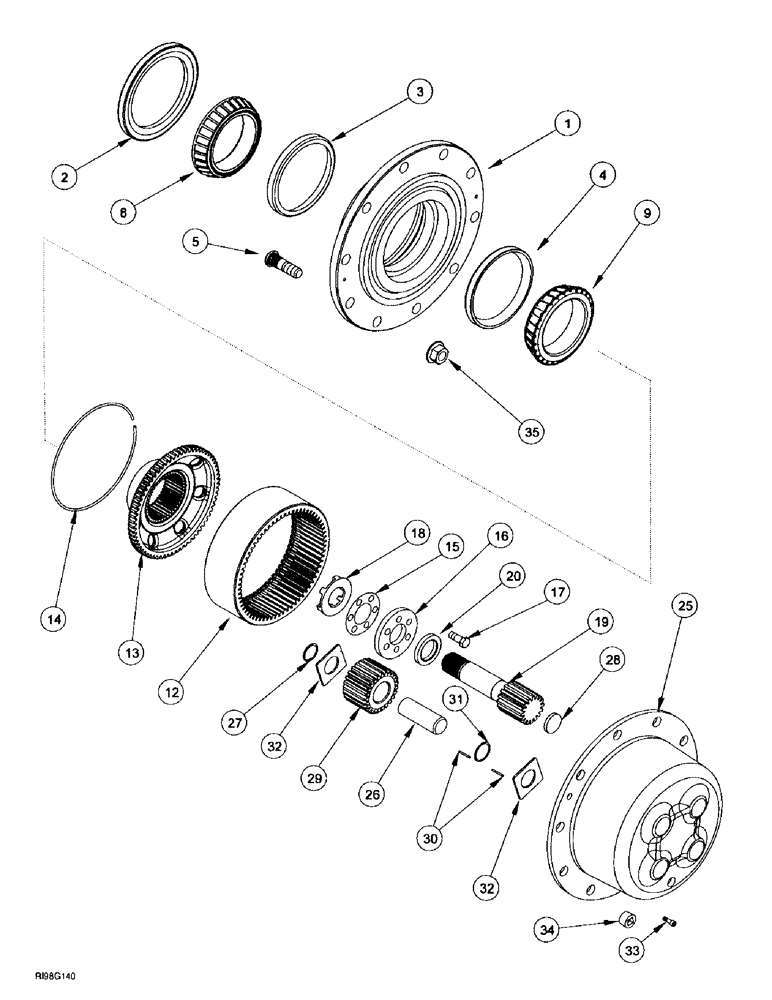

Запчасти Case IH MX220 (5-054) - FRONT AXLE PLANETARIES AND HUB, M.F.D., MX220 (05) - STEERING

191813A5

4WD AXLE ASSY

front drive, see Figures 5-030 - 5-064

1шт.

1

295165A1

HUB

Also Order Ref. 2 - 5

2шт.

2

328500A1

OIL SEAL

2шт.

3

1277344C1

BEARING CUP

2шт.

4

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

BEARING

2шт.

5

231023A1

STUD,M20 x 1.5 x 67mm, Class 8.8

20шт.

8

1277343C1

ROLLER BEARING,107.963 mm ID x 158.763 mm OD x 23.122 mm

2шт.

9

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

2шт.

281984A1

RING GEAR

ASSY, consists of: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

RING gear

1шт.

13

NSS

NOT SOLD SEPARAT

HUB

1шт.

14

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

1981236C1

SHIM KIT

consists of: Ref. 15

2шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

15

NSS

NOT SOLD SEPARAT

SHIM

5шт.

16

251190A1

LARGE PLATE

PLATE, LARGE

2шт.

17

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

12шт.

18

310947A1

THRUST WASHER

2шт.

19

302198A1

SUN GEAR

SHAFT ASSY, Includes: Ref. 20

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER thrust

1шт.

302251A2

GEAR WHEEL

FLANGE ASSY, consists of: Ref. 25 - 32

2шт.

302251A2R

REMAN-AXLE

Reman FLANGE ASSY, consists of: Ref. 25 - 32

2шт.

302251A2C

REMAN-AXLE

Return Number

2шт.

25

NSS

NOT SOLD SEPARAT

FLANGE

1шт.

26

302197A1

PIN,33.3mm OD x 92mm L

4шт.

27

100-21131

SNAP RING,1.312", Int, #131

4шт.

28

302184A1

HOLE PLUG BUTTON

1шт.

316330A2

FIP KIT

gear, consists of: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR

4шт.

30

NSS

NOT SOLD SEPARAT

BEARING needle

288шт.

31

NSS

NOT SOLD SEPARAT

SPACER

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER thrust

8шт.

33

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

34

221-887

PLUG

3/4

2шт.

35

253212A1

NUT,M20 x 1.5, Class 10

flange

20шт.
