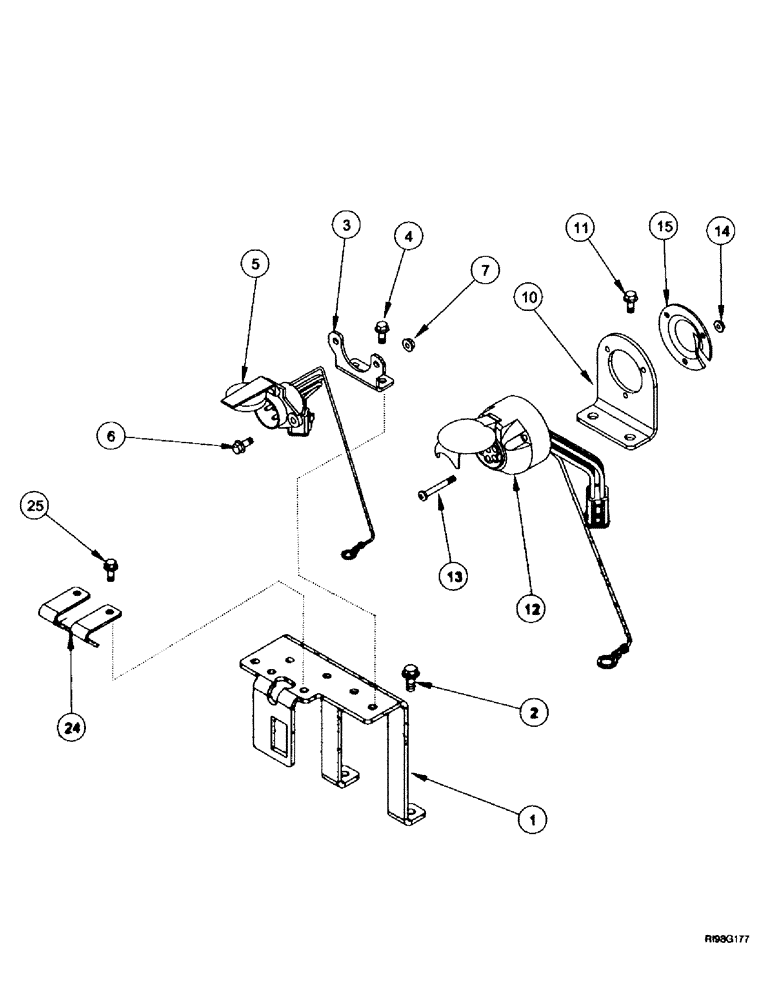

Запчасти Case IH MX220 (4-094) - IMPLEMENT CONNECTOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

297873A2

SUPPORT

BRACKET

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

3

294031A1

SUPPORT

N.A. only

1шт.

4

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

278404A2

ADAPTER

CONNECTOR, 7-pin, N.A. only

1шт.

6

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

10

294032A1

SUPPORT

Europe only

1шт.

11

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

278405A2

CONNECTION

CONNECTOR, 7-pin, Europe only

1шт.

13

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

3шт.

14

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

flange, M6

3шт.

15

3131909R1

CAP

Europe only

1шт.

23

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

BOLT, M6.3 x 16

4шт.

24

297767A1

SUPPORT

BRACKET

1шт.

25

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.
