Запчасти Case IH MX220 (4-056) - WINDSHIELD WIPER ASSEMBLY, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

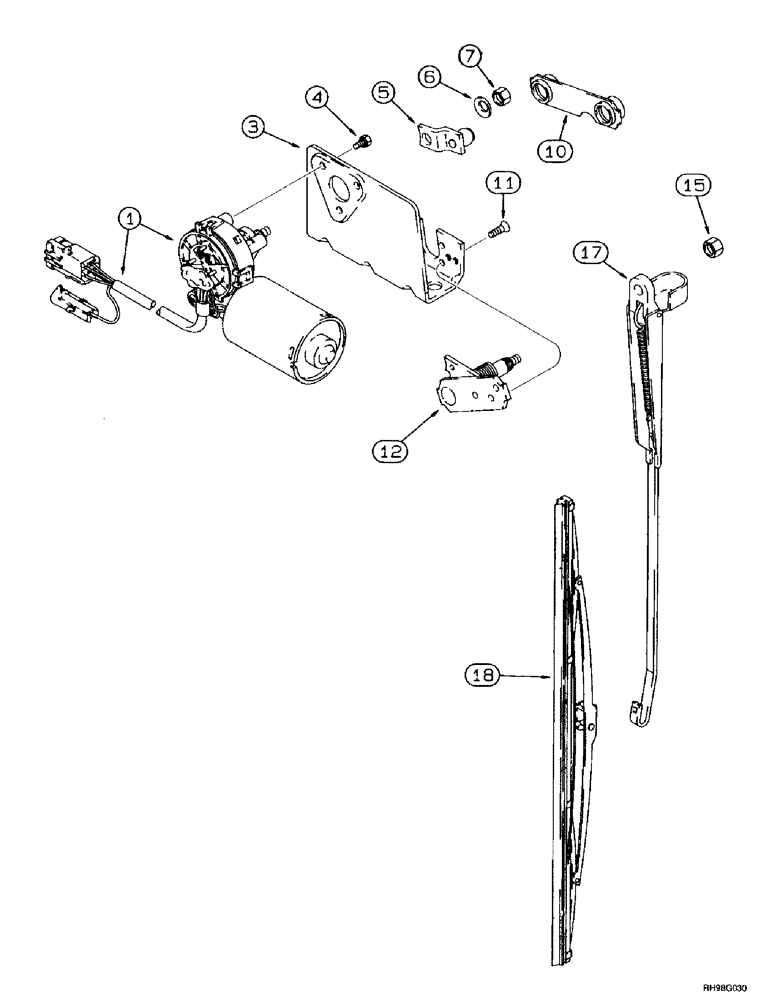

Схема запчастей Case IH MX220 - (4-056) - WINDSHIELD WIPER ASSEMBLY, FRONT AND REAR (04) - ELECTRICAL SYSTEMS
3
15
11
10
5
7
12
1
4
17
18
6

Артикул

Название

Примечание

Количество

1

A186256

WIPER MOTOR,12V

12V

1шт.

3

N8359

SUPPORT

BRACKET

1шт.

4

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

3шт.

5

N8360

SUPPORT

ARM wiper

1шт.

6

N8361

SPRING WASHER

special

1шт.

7

L112090

NUT

special, 8 mm

1шт.

10

N8358

LINK

LINK

1шт.

11

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

1шт.

12

N14112

SHAFT

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

17

236196A1

WIPER ARM

ARM, WIPER

1шт.

18

236194A1

WIPER BLADE

BLADE, WIPER

1шт.

Выбрано товаров: 12
