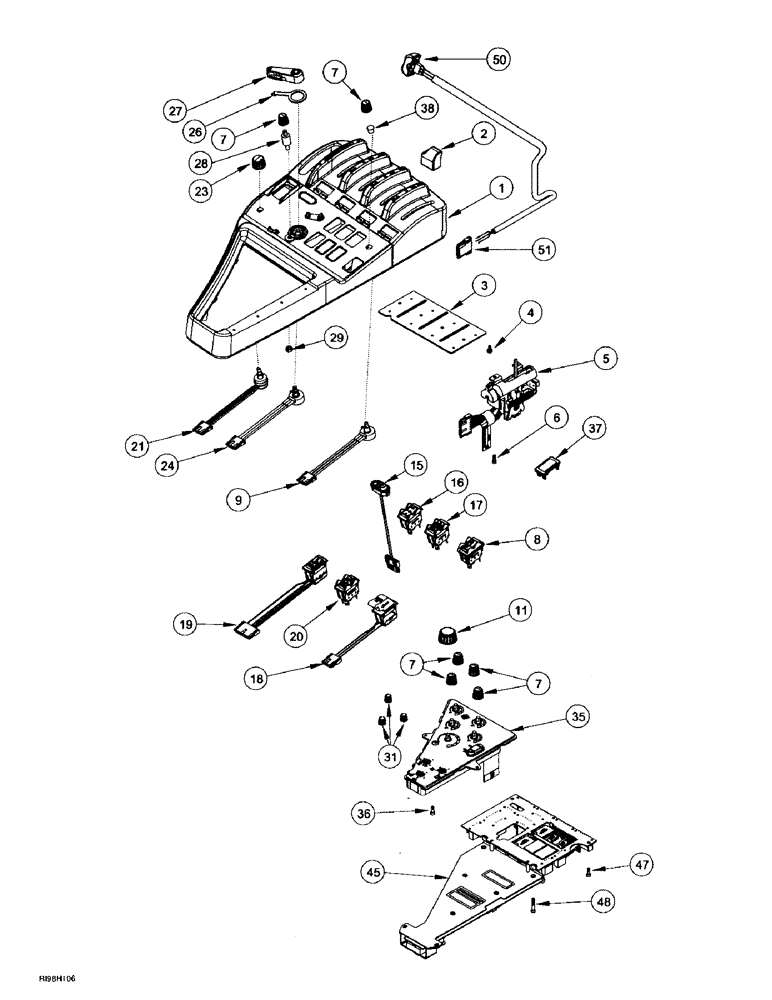

Запчасти Case IH MX220 (4-050) - CONTROLS, RIGHT-HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

COVER ASSY, see Figure 9-078

1шт.

2

220455A3

KNOB

1шт.

3

230098A1

PLATE

1шт.

4

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

5

302992A1

LEVER ASSY.

remote hydraulics

1шт.

47372893R

REMAN-JOYSTICK

MX180, MX200, MX220, MX240, MX270 All (PRIOR TO P.I.N. JJA0105000) (1/99-), Reman for New PN 302992A1

1шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

6

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

No. 8 NC x 3/8 in.

1шт.

7

276797A1

KNOB

1шт.

8

277499A1

SWITCH

5th remote

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control, 5th Remote, Includes Ref. 10

1шт.

10

A39888

NUT

3/8-32

1шт.

11

187820A1

KNOB

KNOB

1шт.

15

229366A1

SWITCH

creep speed

1шт.

16

277497A1

SWITCH

MFD

1шт.

17

277498A1

IGNITION SWITCH

differential lock

1шт.

18

229370A1

IGNITION SWITCH

P.T.O.

1шт.

19

255676A1

SWITCH

hitch control

1шт.

20

229373A1

SWITCH

slip limit control

1шт.

21

256305A2

POTENTIOMETER,1000 Ohm

Draft Control, Includes Ref. 22

1шт.

22

A39888

NUT

3/8-32

1шт.

23

314601A1

BUTTON

KNOB

1шт.

24

256304A2

POTENTIOMETER,1000 Ohm

Hitch Contol

1шт.

25

192231A1

NUT

special

1шт.

26

248087A1

LEVER

1шт.

27

299483A2

CONTROL LEVER

1шт.

28

256303A1

STUD

1шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

1шт.

35

232869A5

PANEL

ASSY, with hitch

1шт.

35

238290A4

PANEL

ASSY, without hitch

1шт.

36

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

37

86000535

PLUG,1.427" x .62", Plastic

Cover

1шт.

38

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

38

353-401

PLUG,Dome, .312" hole, Nylon

1шт.

45

323752A3

UNIT

PROCESSOR, without software

1шт.

Harness that plugs into this processor is 301102A8 per Denise in tech.

1шт.

45

87308354R

REMAN ELECT CONTROL

PROCESSOR, without software

1шт.

45

87308354C

CORE-ELECTRONIC CONT

Return Number

1шт.

47

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

48

864-4025

HEX SOC SCREW,M4 x 25mm, Cl 8.8

BOLT socket, M4 x 25; 8.8

2шт.

50

258010A2

SWITCH

transmission shift

1шт.

51

235676A1

CONNECTOR, ELEC

CONNECTOR

1шт.
