Запчасти Case IH MX220 (3-024) - FUEL INJECTION, PUMP AND DRIVE, MX200, MX220, 6TAA-830 EMISSONS CERTIFIED ENGINE (03) - FUEL SYSTEM

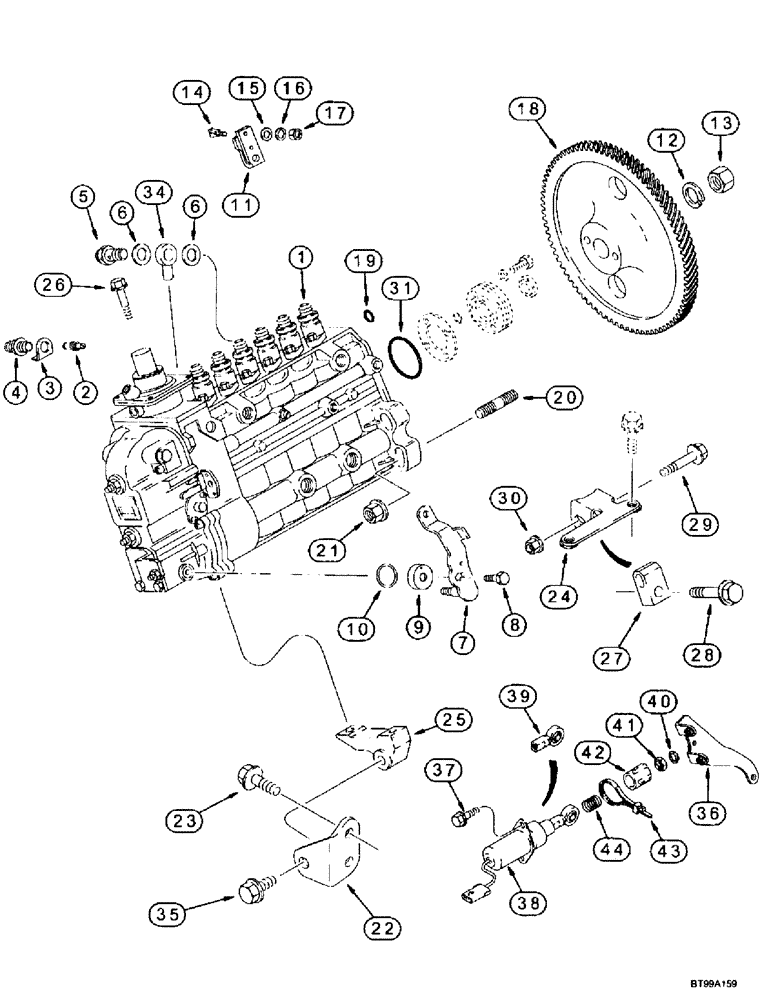

Схема запчастей Case IH MX220 - (3-024) - FUEL INJECTION, PUMP AND DRIVE, MX200, MX220, 6TAA-830 EMISSONS CERTIFIED ENGINE (03) - FUEL SYSTEM
30
18
21
5
43
9
34
7
25
22
10
20
2
3
39
17
40
23
24
6
42
37
31
38
36
29
4
8
28
15
6
12
41
19
11
44
35
26
13
27
16
14
1

Артикул

Название

Примечание

Количество

1

J930530

FUEL INJECTION PUMP

ASSY, MX200, new, consists of: Ref. 2 - 17

1шт.

1

JR930530

REMAN-INJECTION PUMP

ASSY, MX200

1шт.

1

JC930530

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1

J930529

FUEL INJECTION PUMP

ASSY, MX220, new, consists of: Ref. 2 - 17

1шт.

1

JR930529

REMAN-INJECTION PUMP

ASSY, MX220

1шт.

1

JC930529

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1

JR926887

REMAN-INJECTION PUMP

1шт.

1

JC926887

CORE-INJECTION PUMP

Return Part Number, MX200, MX220

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J932096

VALVE

FITTING

1шт.

6

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

7

J929322

LEVER

1шт.

8

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

9

691292C1

RETAINER

HOUSING

1шт.

10

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

11

1808728C1

LEVER

1шт.

12

J920922

LOCK WASHER

1шт.

13

J920921

NUT

M20 x 1.5

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

BOLT

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

829-1306

NUT,M6, Cl 10

1шт.

18

J931380

GEAR

1шт.

19

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING

1шт.

20

J915036

STUD

55 mm (2-5/32 in.)

4шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

22

J930841

SUPPORT

1шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

24

J921357

HOLDER

BRACKET

1шт.

25

J926273

SUPPORT

1шт.

26

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

27

J926781

SUPPORT

1шт.

28

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

29

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

30

J900589

NUT

M8

1шт.

31

J924605

SEAL

1шт.

34

J935740

BANJO BOLT

1шт.

35

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

1шт.

36

J930290

BRACKET

1шт.

37

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

38

J930233

SOLENOID

12V, Includes: Ref. 39 - 44

1шт.

39

L53928

BALL JOINT

SOCKET

1шт.

40

492-11025

LOCK WASHER,1/4"

1шт.

41

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

42

J925171

BOOT

1шт.

43

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

44

J923887

SPRING

1шт.

Выбрано товаров: 49
