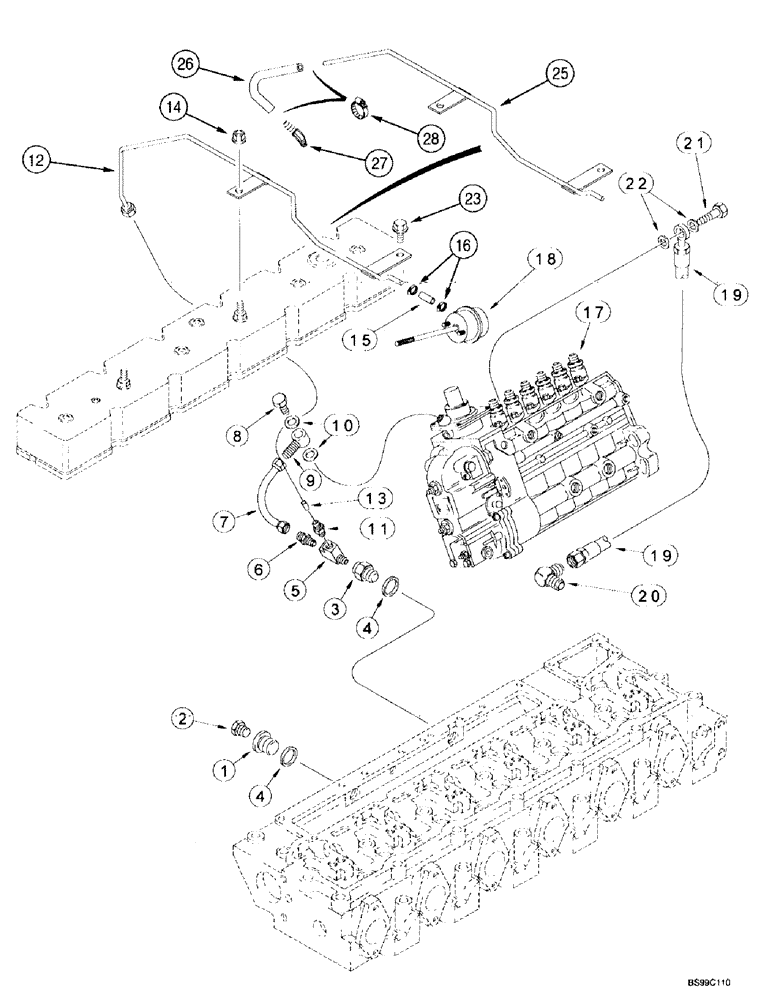

Запчасти Case IH MX220 (3-010) - ANEROID AND WASTEGATE SYSTEM, MX200, MX220, 6TAA-830 EMISSONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J908110

PLUG

1шт.

2

J906619

PLUG,1/8" - 27

hex, 1/8 PT

1шт.

3

J921594

PLUG

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

5

J930789

TEE

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

7

J934608

TUBE,6.35 mm OD x 220 mm L

Replaces: J929102

1шт.

8

J903035

BANJO BOLT

M12 x 24

1шт.

9

J919644

FITTING

CONNECTOR

1шт.

10

J918191

PACKING RING

WASHER 12 x 18 x 1 mm

2шт.

11

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER, 1/4 tube OD x 1/8

1шт.

12

J933380

TUBE,6.35 mm OD x 407.7, 149.4 mm L

TUBE, if equipped

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

15

J920871

HOSE,1294.00 mm

51 mm (2-1/8 in.)

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

17

J930530

FUEL INJECTION PUMP

ASSY, MX200, see Figure 3-024

1шт.

17

JR930530

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

17

JC930530

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

17

J930529

FUEL INJECTION PUMP

ASSY, MX220, see Figure 3-024

1шт.

17

JR930529

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

17

JC930529

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

18

J531892

ACTUATOR

see Figure 2-056

1шт.

18

J531892C

CORE-HYD CYLINDER

Return Part Number, Actuator

1шт.

19

J916779

FUEL HOSE,508.00 mm

1шт.

20

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

To Cylinder Block

1шт.

21

J918002

BANJO BOLT

1шт.

22

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15.5 x 1 mm

2шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

25

J935612

TUBE,6.35 mm OD x 430.2, 141.4 mm L

TUBE, if equipped

1шт.

26

J930003

HOSE,182.00 mm

1шт.

27

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow

1шт.

28

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1шт.
