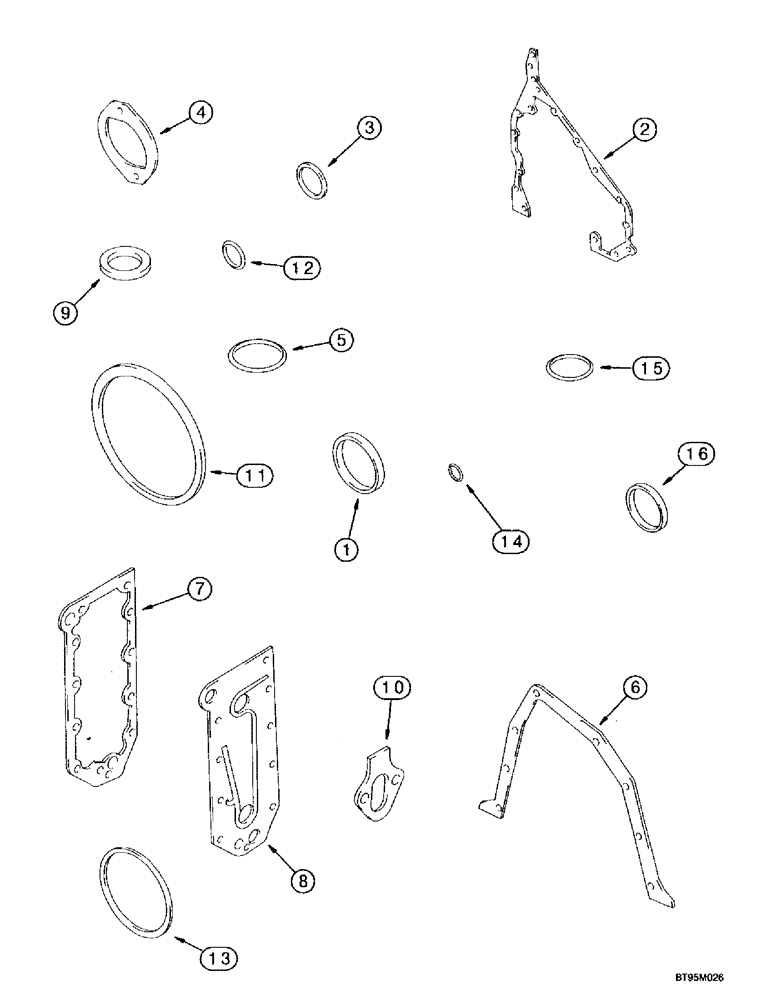

Запчасти Case IH MX220 (2-150) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, CLYLINDER BLOCK (02) - ENGINE

A77855

KIT

gasket, Includes: Ref. 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

see Figure 2-026

1шт.

2

J929253

GASKET

housing, see Figure 2-026

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 2-026

1шт.

4

J931351

GASKET

housing, see Figure 2-27

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-Ring, see Figure 2-022

1шт.

6

J914301

GASKET

mounting, see Figure 2-126

1шт.

7

J918174

GASKET,0.71mm Thk

mounting, see Figure 2-060

1шт.

8

J929011

GASKET,1.19mm Thk

cover, see Figure 2-060

1шт.

9

J901798

SEALING WASHER

not used

1шт.

10

J931059

GASKET

mounting, see Figures 3-012, 3-014, Replaces: J931348

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING not used

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

see Figure 2-134

6шт.

14

J913994

O-RING

see Figure 2-026

1шт.

15

J916284

O-RING

see Figure 3-020

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

RING, not used

1шт.
