(2-090) - CAMSHAFT, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE

Запчасти Case IH MX220 (2-090) - CAMSHAFT, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

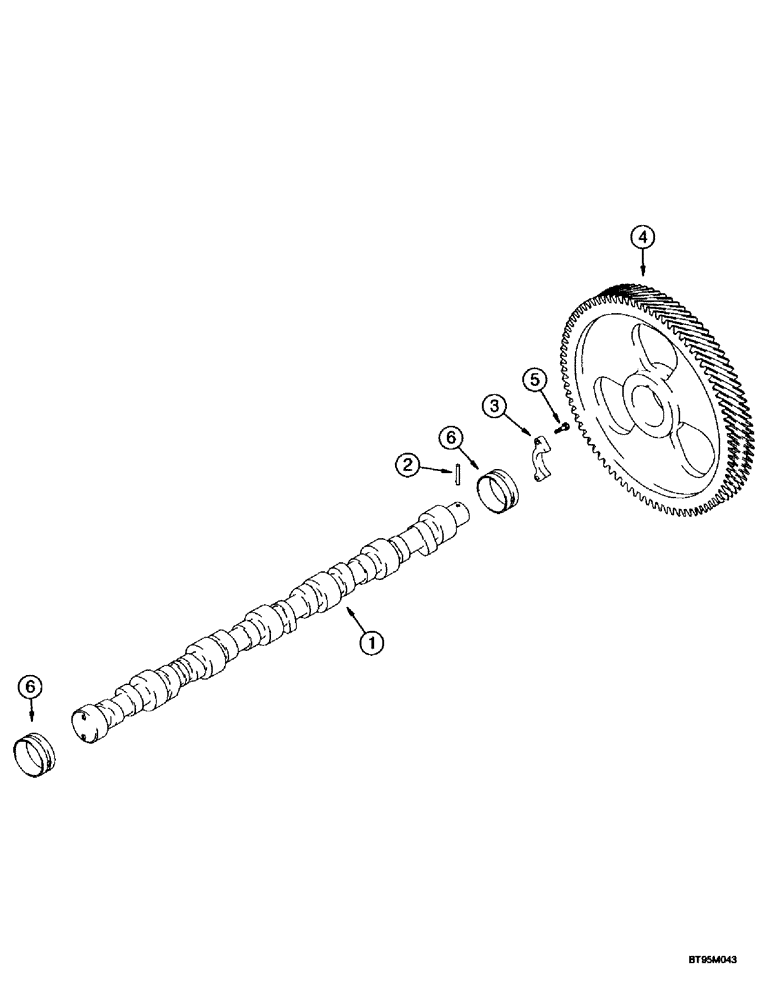

Схема запчастей Case IH MX220 - (2-090) - CAMSHAFT, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
5
6
6
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J920065

CAMSHAFT

Includes Ref. 2

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J920065

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

1шт.

3

J927155

SUPPORT

1шт.

4

J918777

GEAR

GEAR

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Replaces: J943199

7шт.
