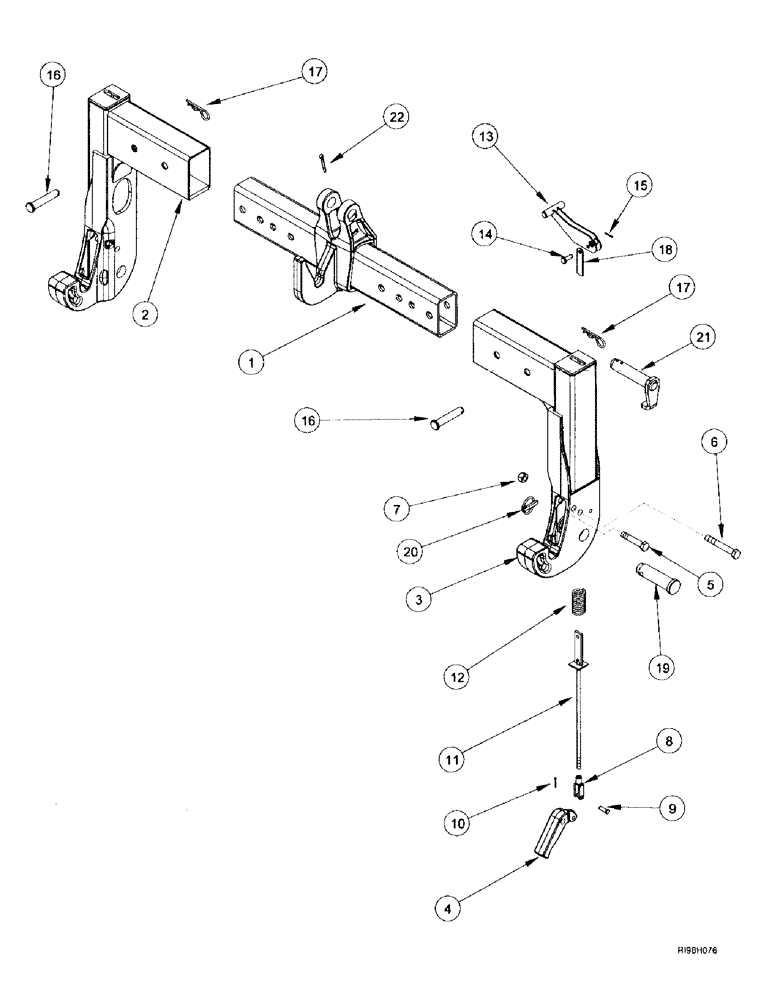

Запчасти Case IH MX220 (9-134) - QUICK HITCH COUPLER, CONVERTIBLE, N.A. ONLY, CATEGORY III / III-N (09) - CHASSIS/ATTACHMENTS

310528A

KIT

attachment, order from machinery price list, consists of: Ref. 1 - 22

1шт.

300949A3

HITCH ASSY, TRAILER

quick, consists of: Ref. 1 - 17

1шт.

1

301795A2

FRAME, HITCH

HOOK upper

1шт.

2

301796A3

FRAME, HITCH

HOOK lower, left-hand

1шт.

3

301797A3

FRAME, HITCH

HOOK lower, right-hand

1шт.

4

297598A1

LATCH

2шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

6

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

7

829-1416

NUT,M16, Cl 10

2шт.

8

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

9

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

10

432-616

COTTER PIN,3/32" x 1"

2шт.

11

302258A1

ROD

LINK

2шт.

12

70-4340T1

COMPRESSION SPRING

2шт.

13

315227A1

HANDLE

2шт.

14

729-1030

CLEVIS PIN,M10 x 30

2шт.

15

733-3220

COTTER PIN,M3.2 x 20

2шт.

16

315909A1

PIN

clevis

4шт.

If looking for information on hitches with bolts where Ref. 16 and 17 are pins, check service bulletin NTR SB MG 9003 99. The service bulletin is attached to Ref. 21 on this figure. sp 4/24/01

1шт.

17

1978738C1

HAIR PIN COTTER

3/16"

4шт.

If looking for information on hitches with bolts where Ref. 16 and 17 are pins, check service bulletin NTR SB MG 9003 99. The service bulletin is attached to Ref. 21 on this figure. sp 4/24/01

1шт.

18

315228A1

LARGE PLATE

PLATE, LARGE LINK

4шт.

19

A75028

PIN,36.45mm OD x 138mm L

2шт.

20

A64204

PIN

linch

2шт.

21

321528A2

PIN

1шт.

If looking for information on hitches with bolts where Ref. 16 and 17 are pins, check service bulletin NTR SB MG 9003 99. The service bulletin is attached to Ref. 21 on this figure. sp 4/24/01

1шт.

22

733-6350

COTTER PIN,M6.3 x 50

6.3 x 50 mm

1шт.
