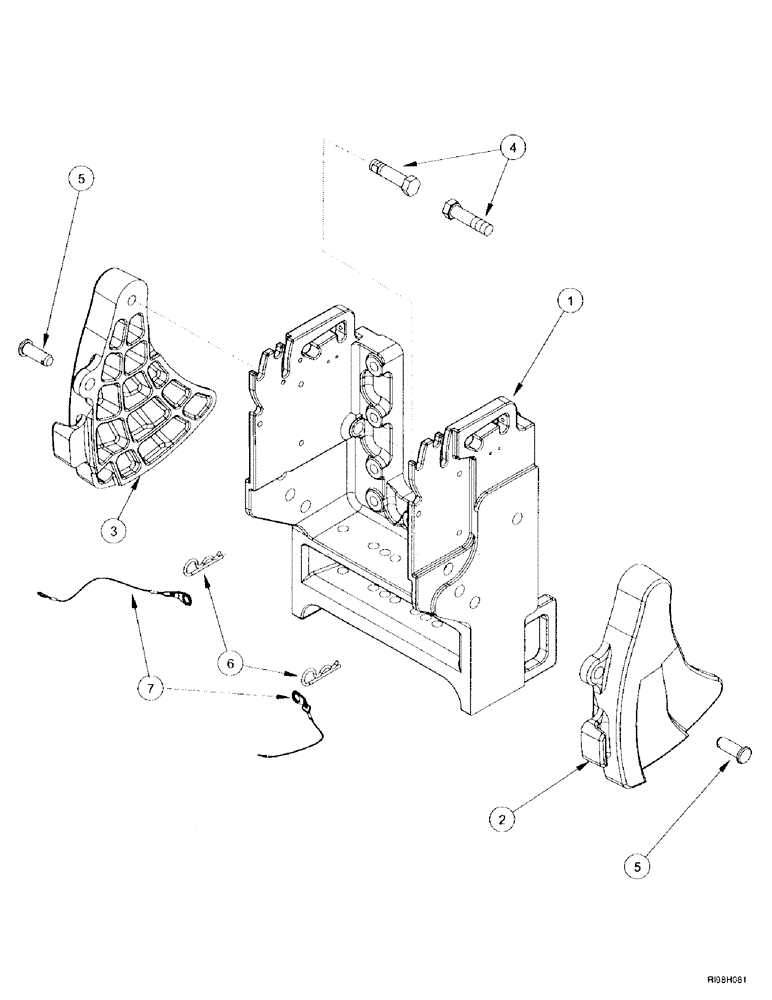

Запчасти Case IH MX220 (9-128) - SWAY LIMITER, HITCH (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BRACKET, see Figure 9-102

1шт.

2

293792A3

STOP

CAM, right-hand

1шт.

3

293789A3

STOP

CAM, left-hand

1шт.

4

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

BOLT lock, M20 x 80; 10.9

2шт.

5

439-11236

HEADED PIN,3/4" x 2 1/4"

clevis

2шт.

6

1978738C1

HAIR PIN COTTER

3/16"

2шт.

7

336494A1

CHAIN

Europe only

2шт.
