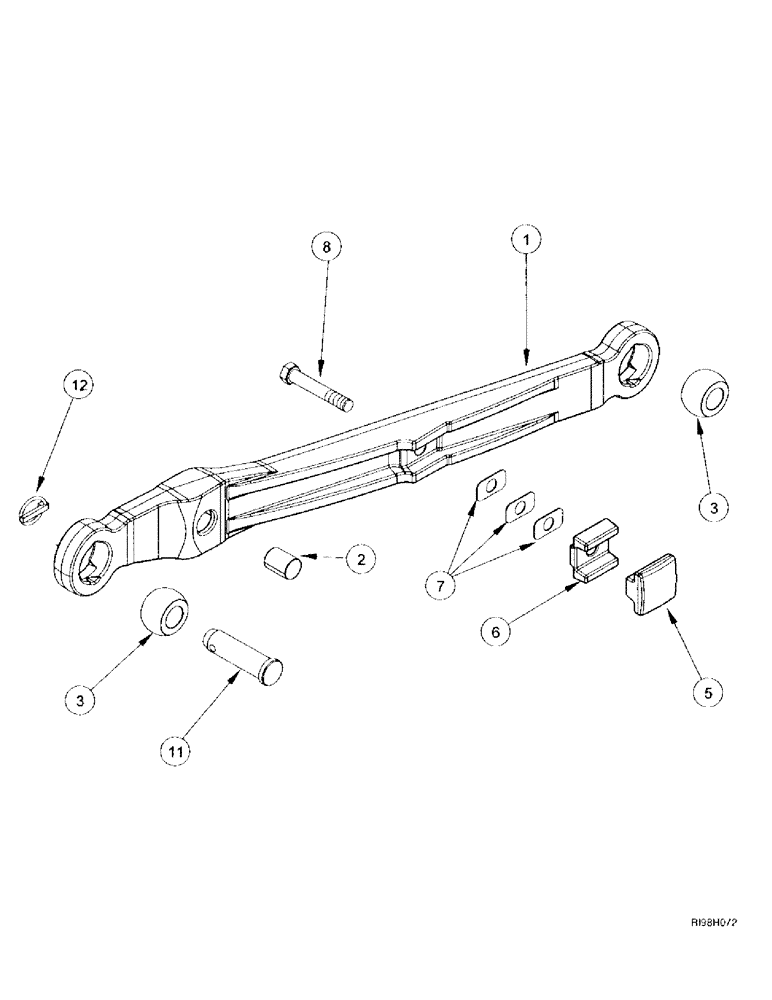

Запчасти Case IH MX220 (9-124) - LOWER LIFT LINKS, HITCH, N.A. ONLY, MX200, MX220, MX240, MX270 (09) - CHASSIS/ATTACHMENTS

320473A1

LOWER LINK

ARM ASSY, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

ARM

1шт.

2

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

1шт.

3

231298A1

BALL JOINT

2шт.

5

283291A3

BUMPER

2шт.

6

281805A3

SPACER

2шт.

7

238141A2

SHIM

6шт.

8

607-20120

BOLT,Hex, M20 x 120mm, Cl 10.9

BOLT, M20 x 120; 10.9

2шт.

11

A75028

PIN,36.45mm OD x 138mm L

without draft control

2шт.

12

A64204

PIN

linch

2шт.
