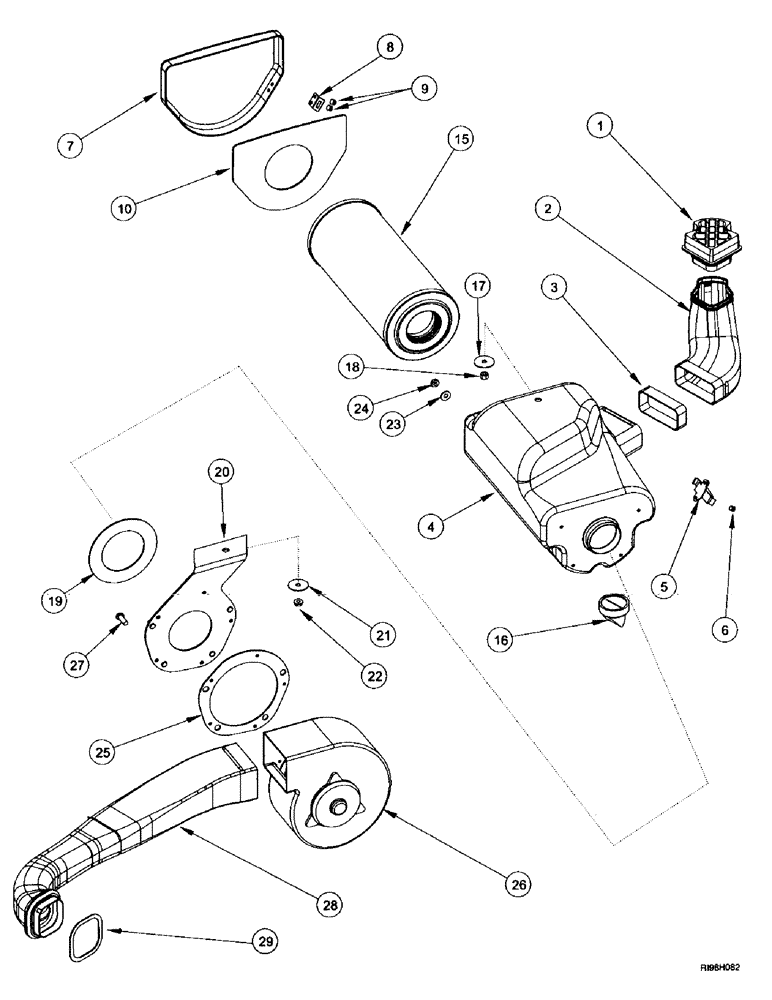

Запчасти Case IH MX220 (9-098) - AIR CONDITIONING, AIR FILTER (09) - CHASSIS/ATTACHMENTS

1

255236A2

ORIFICE RING

GROMMET

1шт.

2

255237A2

AIR DUCT

1шт.

3

280951A2

SEAL

1шт.

310687A1

FILTER ASSY

Includes: Ref. 4- 10

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

5

240748A2

LATCH

2шт.

6

151-539

RIVET,Pop, 3/16" x .450"

3/16 x 7/16

4шт.

255218A2

COVER

ASSY, Includes: Ref. 7- 10

1шт.

7

NSS

NOT SOLD SEPARAT

COVER

1шт.

8

240749A2

PLATE

2шт.

9

151-539

RIVET,Pop, 3/16" x .450"

3/16 x 7/16

4шт.

10

259339A2

GASKET

cover

1шт.

15

259288A1

CAB FILTER

1шт.

16

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

dust

1шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

255219A2

GASKET

mounting

1шт.

20

252244A2

BRACKET

1шт.

21

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

1шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

23

495-31022

WASHER,#10

4шт.

24

225-14210

NUT,#10-32

4шт.

25

255220A2

GASKET,4.8mm Thk

mounting

1шт.

26

330137A1

BLOWER

1шт.

27

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

5шт.

28

255295A3

DUCT

1шт.

29

280510A2

FOAM INSULATION

housing

1шт.
