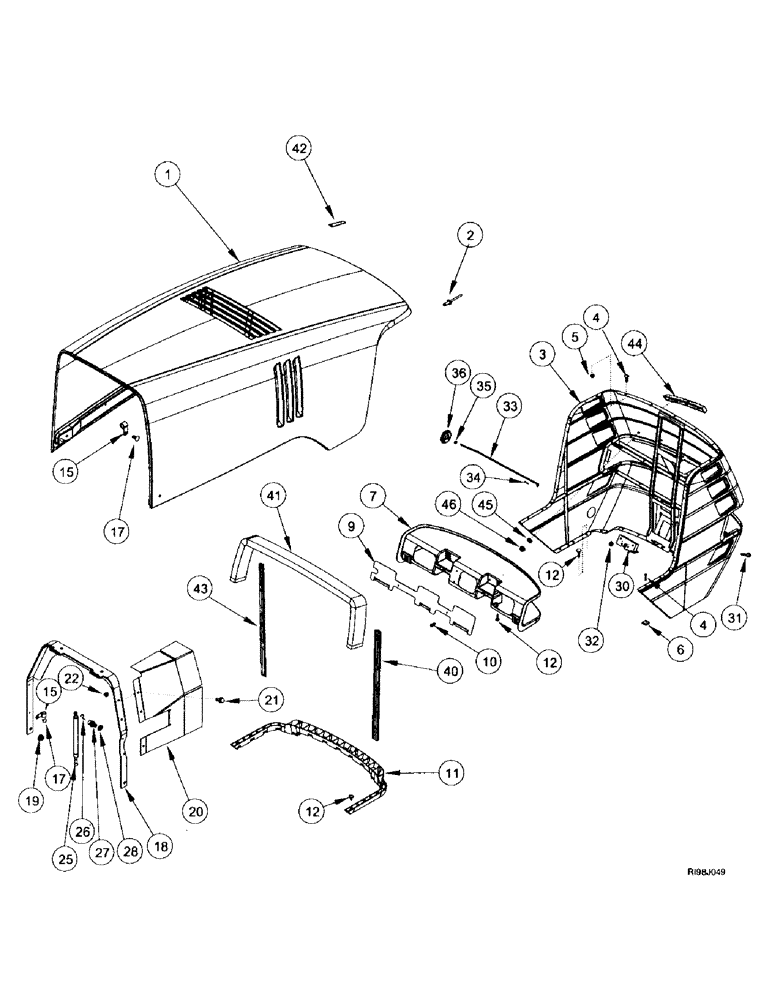

Запчасти Case IH MX220 (9-022) - HOOD, TILTING (09) - CHASSIS/ATTACHMENTS

1

251047A4

HOOD ASSY.

engine, Includes: Ref. 2

1шт.

2

151-539

RIVET,Pop, 3/16" x .450"

3/16 x 7/16

4шт.

3

87448498

GRILLE

SCREEN

1шт.

4

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

No. 10 x 3/4

13шт.

5

96900C1

SPRING NUT,U, #10-16, Panel type

7шт.

6

131-833

SPRING NUT,U, #10-16

10шт.

7

257465A2

HOUSING

N.A. only

1шт.

7

257466A2

HOUSING

HOUSING, Europe only

1шт.

8

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

No. 10 x 3/4

2шт.

9

257581A1

PLATE

1шт.

10

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

No. 10 x 3/4

2шт.

11

225312A5

MOLDING

TRIM

1шт.

12

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

20шт.

15

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

CLIP

7шт.

17

93199C1

FASTENER

5шт.

18

252367A4

BRACE

1шт.

19

9804279

FLANGE NUT,Hex, M12, Cl 8

flange, M12

4шт.

20

251858A1

PROTECTION PLATE

PANEL

1шт.

21

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

25

252636A1

CYLINDER ASSY.

STRUT

2шт.

26

3233348R1

CLIP

4шт.

27

3234063R1

BALL STUD,M10 x 1.5

STUD

4шт.

28

892-11010

LOCK WASHER,M10

2шт.

30

R55002

LATCH

1шт.

31

844-6035

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

BOLT flange, M6 x 35; 8.8

2шт.

32

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

33

297958A2

ROD

1шт.

34

733-2512

COTTER PIN,M2.5 x 12

1шт.

35

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

1шт.

36

301222A1

BUTTON

1шт.

40

281158A1

SEAL

1шт.

41

281159A1

SEAL

1шт.

42

1968108C2

TRIM

TRIM

1шт.

43

308101A1

SEAL,660mm L

1шт.

44

303520A2

SYMBOLS

SYMBOL EMBLEM

1шт.

45

316098A1

SPACER

2шт.

46

825-5148

SERRATED NUT,M8, Flg Ser

2шт.
