Запчасти Case IH MX220 (8-074) - REMOTE HYDRAULIC COUPLINGS (08) - HYDRAULICS

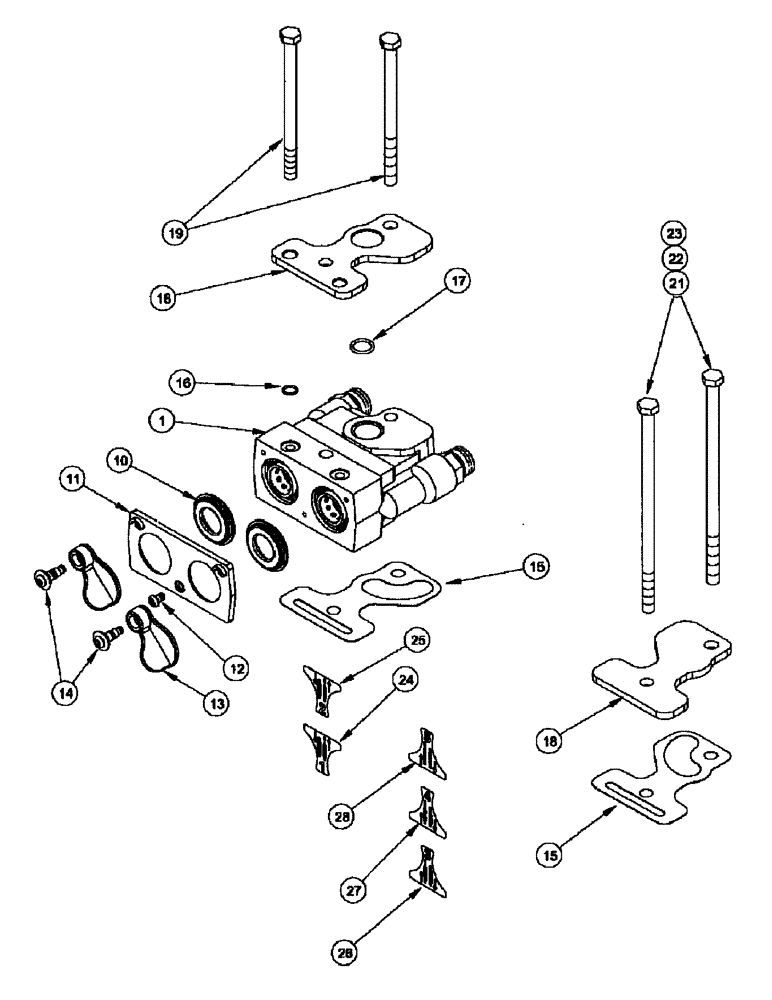

Схема запчастей Case IH MX220 - (8-074) - REMOTE HYDRAULIC COUPLINGS (08) - HYDRAULICS
21
24
13
16
11
22
17
15
10
27
25
26
1
28
18
19
12
18
23
15
14

Артикул

Название

Примечание

Количество

1

275182A1

PUSH-PULL COUPLING

hydraulic, see Figure 8-076

1шт.

10

240969A1

SEAL,22.9mm ID x 46.2mm OD x 8.07mm Thk

dust

1шт.

11

240971A2

PLATE

1шт.

12

240970A2

HEX SOC SCREW,BTN HD, M6 x 1 x 10mm

1шт.

13

240974A2

DOOR COVER

1шт.

If looking for one with half moon cutout, the part number is 387611A1. 10/31/00 cw

1шт.

14

240973A2

CAPTIVE WASHER SCREW,Hex Flng, M16 x 1 x 25mm

1шт.

15

253660A1

GASKET

mounting

2шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

258671A2

PLATE

2шт.

19

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

21

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

3 circuits

2шт.

22

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

4 Circuits

2шт.

23

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

BOLT, M10 x 205, 5 circuits

2шт.

24

284327A1

DECAL

1шт.

This is for number 1. The 284328A1 is for number 2, and so on.

1шт.

25

284328A1

DECAL

1шт.

26

284329A1

DECAL

1шт.

27

284330A1

DECAL

1шт.

28

284331A1

DECAL

1шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Выбрано товаров: 21
