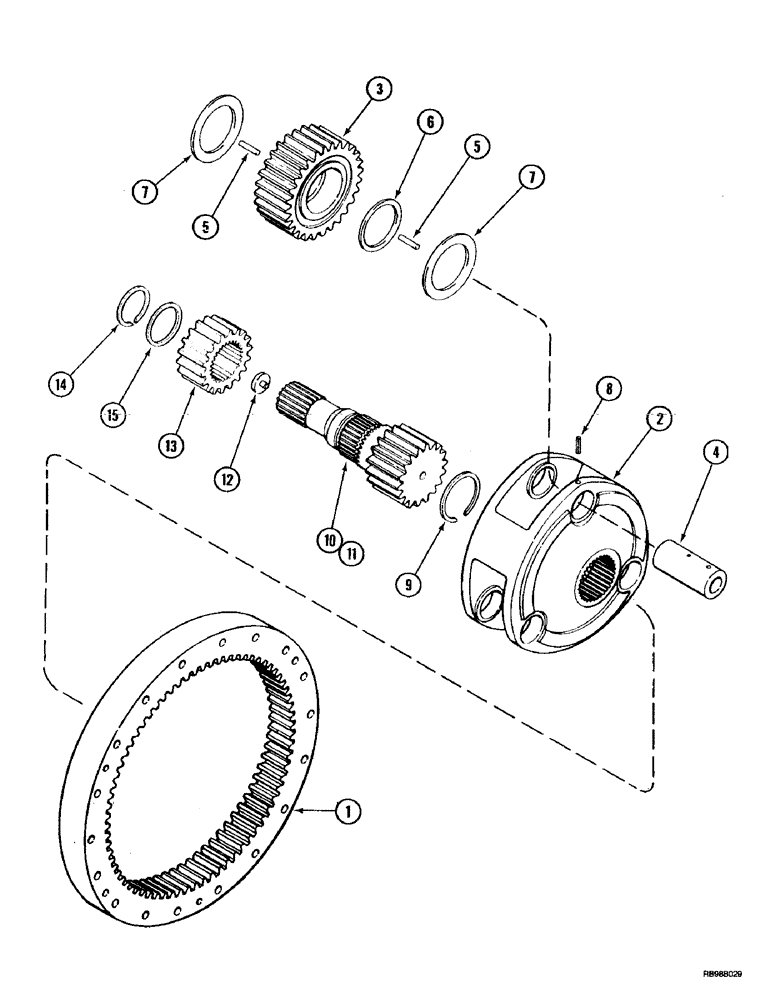

Запчасти Case IH MX220 (6-090) - REAR AXLE, PLANETARY, MX200, MX220, MX240 (06) - POWER TRAIN

1

1259670C2

RING GEAR

72T

2шт.

2

1349345C1

CARRIER

2шт.

3

1349350C2

PINION

GEAR, 28T

6шт.

4

1349346C2

SHAFT

6шт.

5

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

348шт.

6

1349348C1

THRUST RING

6шт.

7

1997886C1

THRUST WASHER

12шт.

8

838-3826

PIN,M8 x 26, Coiled

6шт.

9

101-11350

SNAP RING,#350, Ext

2шт.

10

94651C2

SHAFT

left-hand

1шт.

11

94652C3

SHAFT

ASSY, right-hand, Includes: Ref. 12

1шт.

12

1981327C1

PLUG

1шт.

13

1259732C1

HUB,47T Internal/18T External

2шт.

14

101-11275

SNAP RING,#275, 2.594, Ext

2шт.

15

1259753C1

THRUST WASHER

2шт.
