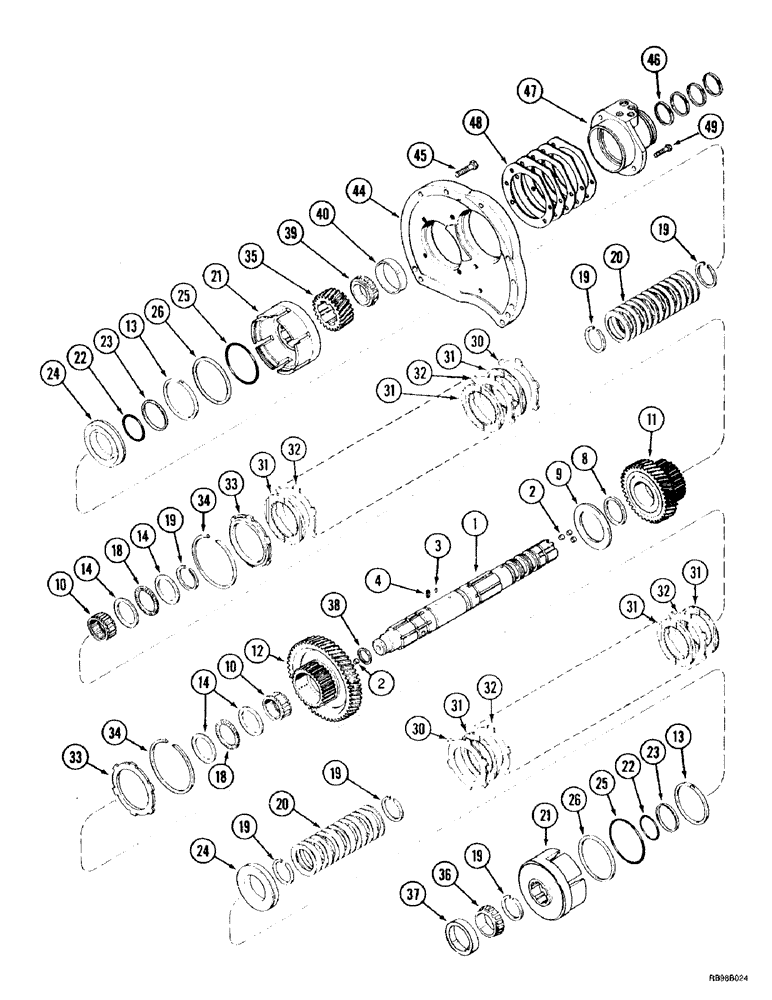

Запчасти Case IH MX220 (6-036) - RANGE TRANSMISSION, INPUT SHAFT (06) - POWER TRAIN

1

1997446C2

SHAFT ASSY.

Includes: Ref. 2 - 4

1шт.

2

1342852C1

PLUG

12 mm

4шт.

3

38-3605

PIN,3/32" x 5/16", Coiled

5шт.

4

1963874C1

PIN,7.94mm OD x 14mm L, Slotted

5/16 x 14 mm

1шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

2шт.

11

1285977C1

GEAR

37T

1шт.

12

220058A1

PINION

GEAR, 59T

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

14

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

19

93350C1

RING

retaining

6шт.

20

1286012C2

BELLEVILLE WASHER

26шт.

21

1285972C2

CLUTCH HOUSING

CARRIER

2шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

24

242492A4

PISTON

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

30

128114A1

DISC

PLATE separator

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

PLATE friction, MX180

16шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

PLATE friction, MX200, MX220, MX240, MX270

20шт.

32

92934C2

DISC

PLATE separator, MX180

14шт.

32

92934C2

DISC

PLATE separator, MX200, MX220, MX240, MX270

18шт.

33

1342854C2

DISC

PLATE backing, MX180

2шт.

33

1342645C3

CLUTCH DISC

CLUTCH DISK PLATE backing, MX200, MX220, MX240, MX270

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

retaining

2шт.

35

1285971C1

DRIVING GEAR

GEAR, 22T

1шт.

36

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

1шт.

37

A75210

BEARING CUP,3.5433" OD x 0.9055"

1шт.

38

116797C2

RING

1шт.

39

ST2063

ROLLER BEARING,2.2505" ID x 4.4385" OD x 1.2015"

1шт.

40

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

1шт.

44

281696A1

SUPPORT

1шт.

45

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

46

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

4шт.

47

254337A2

CAGE

1шт.

48

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

2шт.

48

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

2шт.

48

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

2шт.

48

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

2шт.

48

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

2шт.

49

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, M10 x 30

3шт.
