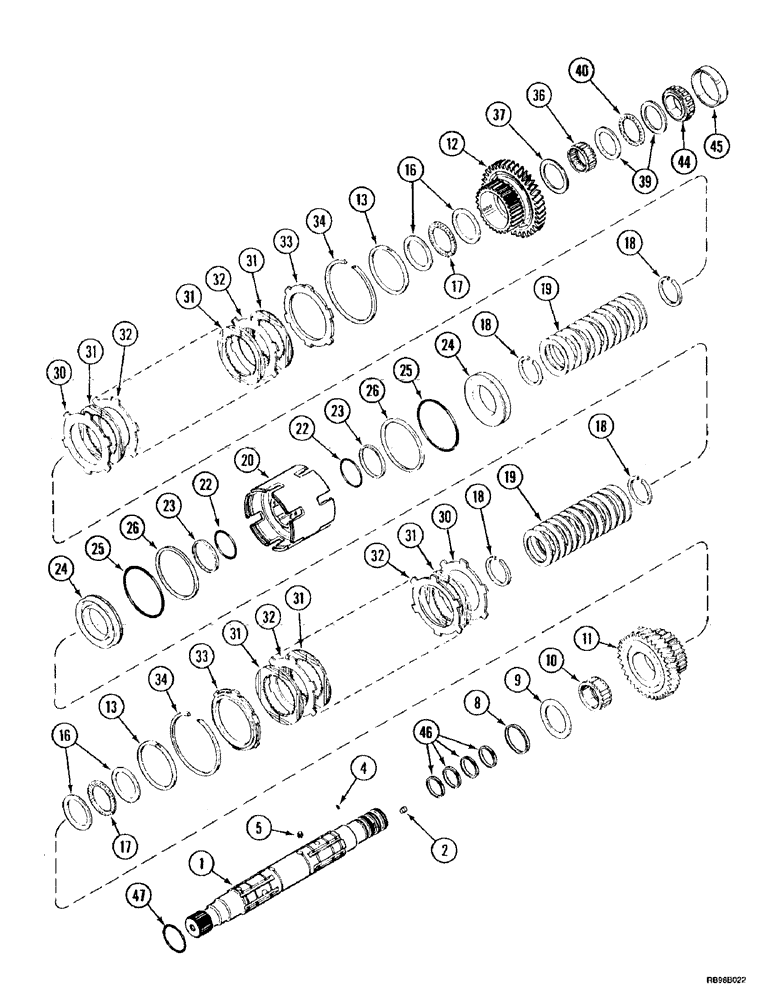

Запчасти Case IH MX220 (6-026) - SPEED TRANSMISSION, OUTPUT SHAFT FRONT CLUTCH (06) - POWER TRAIN

1

230135A1

SHAFT

ASSY, Includes: Ref. 2, 4, 5

1шт.

2

1342852C1

PLUG

12 mm

3шт.

4

38-3605

PIN,3/32" x 5/16", Coiled

6шт.

5

1963875C1

COTTER PIN

4шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

1шт.

9

1997888C1

THRUST WASHER,70.25mm ID x 95mm OD x 3.13mm Thk

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

1шт.

11

1285985C1

GEAR

34T

1шт.

12

1285987C1

PINION

GEAR, 39T

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

18

93350C1

RING

retaining

4шт.

19

1286012C2

BELLEVILLE WASHER

24шт.

Ref. 19, 1286012C2, is quantity of 11 under reverse clutch and quantity of 13 under 5/6 clutch for a total of 24 on the speed output shaft. CJK-TSG 6/5/01

1шт.

20

93304C2

CLUTCH HOUSING

CARRIER

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

2шт.

24

242492A4

PISTON

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

2шт.

30

128114A1

DISC

PLATE separator

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

PLATE friction, MX180

10шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

PLATE friction, MX200, MX220, MX240, MX270

14шт.

32

92934C2

DISC

PLATE separator, MX180

8шт.

32

92934C2

DISC

PLATE separator, MX200, MX220, MX240, MX270

12шт.

33

1342854C2

DISC

PLATE backing, MX180

2шт.

33

1342645C3

CLUTCH DISC

CLUTCH DISK PLATE backing, MX200, MX220, MX240, MX270

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

retaining

2шт.

36

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

1шт.

37

1342513C1

SPACER

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

2шт.

40

K620185

THRUST BEARING

1шт.

44

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

1шт.

45

ST964

BEARING CUP,2.063" ID x 3.626" OD x 0.9768"

1шт.

46

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

4шт.

47

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.
