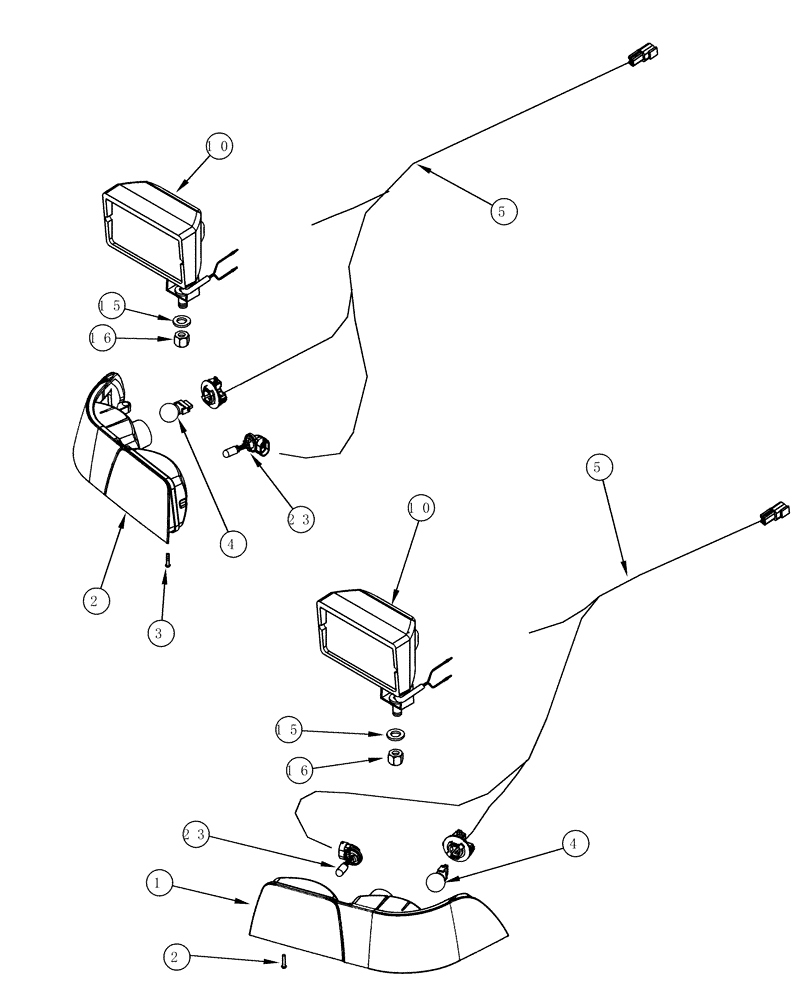

Запчасти Case IH MX220 (04-35) - LAMPS REAR FENDER, AUSTRALIA ONLY (04) - ELECTRICAL SYSTEMS

Australia Only

1шт.

1

279221A1

LIGHT ASSY.,Halogen, 12V, 37W, Red/Clear

Right Hand, Combination

1шт.

2

279222A1

LIGHT ASSY.,Halogen, 12V, 37W, Red/Clear

Left Hand, Combination

1шт.

3

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

6шт.

4

303573A1

BULB

2шт.

5

298393A3

HARNESS

2шт.

10

239758A1

HEADLIGHT

Work Lamp, See Figure 4-36

2шт.

14

NSS

NOT SOLD SEPARAT

Base

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

16

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

23

323094A1

BULB

894-12V

1шт.
